Switch, Electronic Stability Program (Esp): Description: Description

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

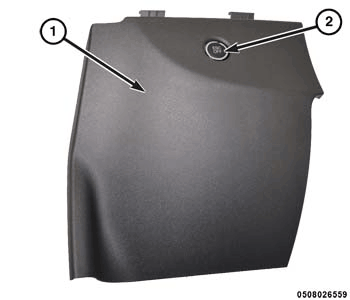

Fig 1: Electronic Stability Control Switch & Closeout Panel
GC0158571Courtesy of CHRYSLER GROUP, LLC

The Electronic Stability Control (ESC) switch (2) is mounted to the closeout panel (1) left of the steering column.

The ESC switch (2) turns the Electronic Stability Control off and back on. The system resets to ESC-on each time the ignition is cycled.

When the ESC Off switch is depressed and released, turning ESC off, it does not completely turn the system off. The ESC system reduces torque management to a lesser amount, but ESC function can still occur if the system perceives the need.
