Input Shaft, Transmission: Assembly: Assembly

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

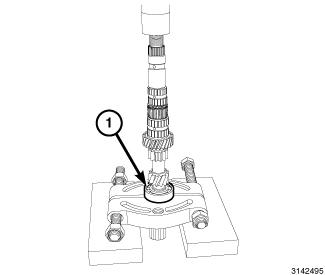

Fig 1: Installing Main Shaft Front Bearing
GC0152898Courtesy of CHRYSLER GROUP, LLC
  1. Install the front bearing using the Bearing Splitter (special tool #P-334, Splitter, Bearing).

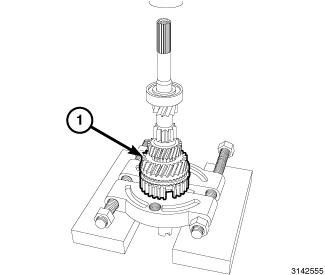

    Fig 2: Installing Third & Fourth Gear Synchronizer Hub Assembly
    GC0152902Courtesy of CHRYSLER GROUP, LLC
  2. Install third and forth gear synchronizer hub assembly using the Bearing Splitter (special tool #P-334, Splitter, Bearing).
  3. Install the sleeve and detents to the hub assembly.

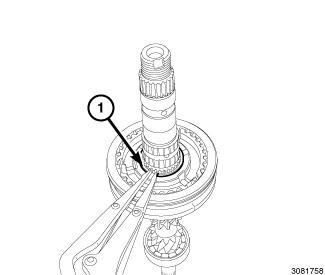

    Fig 3: Snap Ring
    GC0152639Courtesy of CHRYSLER GROUP, LLC
  4. Install the snap ring to the shaft.

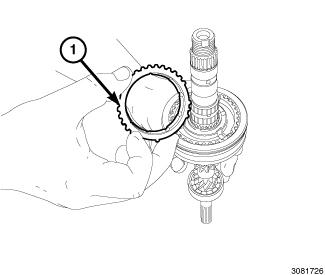

    Fig 4: Blocker Ring
    GC0152638Courtesy of CHRYSLER GROUP, LLC
  5. Install the blocker ring to the synchronizer hub.
  6. Install the forth driven gear to the shaft.
  7. Install the rear bearing using Bearing Installer (special tool #C-3095-A, Installer, Bearing).
