Standard Procedure - Fluid Drain And Fill

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

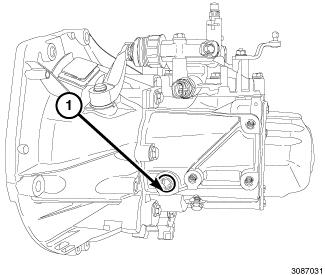

Fig 1: Transaxle Drain Plug

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The vehicle must be level when checking the fluid level.

NOTE:

All C514 Transmissions require the use of Castrol BOT 350 M3.

The transmission drain plug (1) is located on the lower left side of the transmission differential housing. Tighten the drain plug to 18 N.m (13 lb ft.).

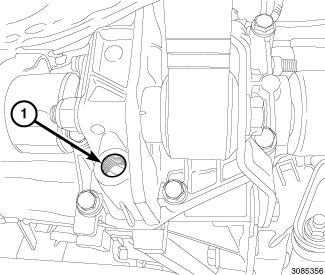

Fig 2: Transaxle Fill Plug

Courtesy of CHRYSLER GROUP, LLC

The transmission fill plug (1) is located on the left side of the transmission differential area. The fluid level should be even with the bottom of the transmission fill hole. Tighten the fill plug to 25 N.m (18 lb ft.).
