Differential, Transaxle: Disassembly: Disassembly

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

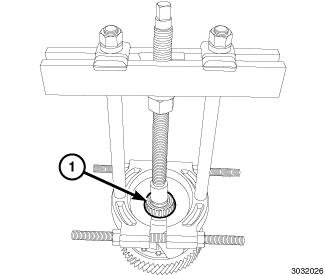

Fig 1: Removing Right Differential Bearing
GC0152488Courtesy of CHRYSLER GROUP, LLC
  1. Remove right side differential bearing (1) using Bridge (special tool #938, Bridge) (2) in combination with Bearing Remover (special tool #9678, Press Plug) and Crankshaft Insert (special tool #8513A, Insert, Crankshaft).

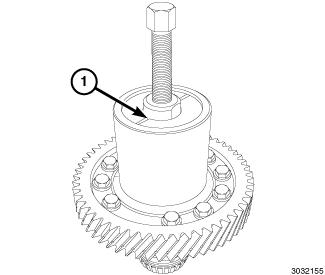

    Fig 2: Removing Left Differential Bearing
    GC0152490Courtesy of CHRYSLER GROUP, LLC
  2. Remove left side differential bearing using Bearing Puller (special tool #5048, Puller, Bearing).
    Fig 3: Ring Gear Bolts
    GC0152604Courtesy of CHRYSLER GROUP, LLC
  3. Remove the ring gear bolts from the differential case, do not reuse the bolts.
  4. Remove the ring gear from the case.
