Cable, Gearshift Control: Installation: Installation

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

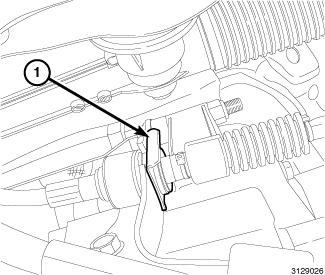

Fig 1: Cable Mounting Bracket

Courtesy of CHRYSLER GROUP, LLC

Install cable assembly through floor pan opening.
Route the cable assembly into engine compartment and over transaxle assembly.
Raise the vehicle.
Install the cable assembly grommet into the opening in the floor pan, seat the grommet completely.
Reposition the underbody heat shield.
Install the cable to the bracket and install the clip (1).

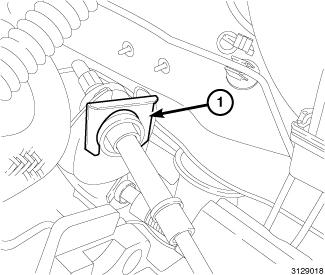

Fig 2: Underbody Retaining Clip
Courtesy of CHRYSLER GROUP, LLC
Install the cable to the bracket and install the clip (1).
Lower the vehicle.

Fig 3: Cable Retention Clip
Courtesy of CHRYSLER GROUP, LLC
Install the cable to the bracket and install the clip (1).

Fig 4: Shift Cable
Courtesy of CHRYSLER GROUP, LLC
Connect the shifter cable to the shift lever.

Fig 5: Shifter Selector Cable On Selector Lever
Courtesy of CHRYSLER GROUP, LLC
Connect the shifter selector cable to the selector lever.
Install the battery tray assembly. Refer to TRAY, BATTERY, INSTALLATION .

Fig 6: Horse Shoe Reinforcement Bracket
Courtesy of CHRYSLER GROUP, LLC
Install the horse shoe reinforcement bracket, tighten the bolts to 30 N.m (22 ft. lbs.).
Install the shifter. Refer to MECHANISM, GEARSHIFT, INSTALLATION .
