Seal, Input Shaft: Installation: Installation

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

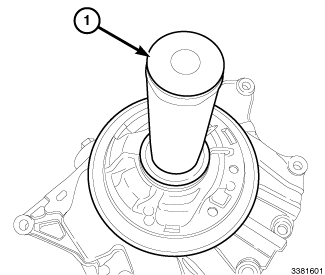

Fig 1: Installing Input Shaft Seal
GC0153379Courtesy of CHRYSLER GROUP, LLC
  1. Using (special tool #10318, Installer, Pump Oil Seal) (1), install the oil pump seal.
  2. Install the torque convertor. Refer to TORQUE CONVERTER, INSTALLATION .
  3. Install transmission to vehicle. Refer to INSTALLATION .
