Resonator, Exhaust: Removal: Removal

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

The normal operating temperature of the exhaust system is very high. Therefore, never attempt to service any part of the exhaust system until it is cooled. Special care should be taken when working near the catalytic converter. The temperature of the converter rises to a high level after a short period of engine operation time.

WARNING:

If torches are used when servicing the exhaust system, do not allow any flame near the fuel lines or the fuel tank. Failure to follow these instructions may result in possible serious or fatal injury.

Fig 1: Exhaust Pipe, Muffler Pipe & Clamp
GC0152349Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear strap clamp (1).

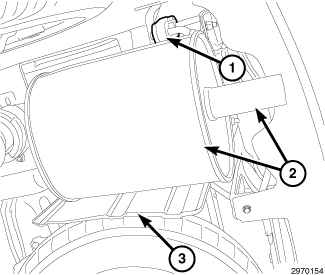

    Fig 2: Resonator & Isolators
    GC0152350Courtesy of CHRYSLER GROUP, LLC
  2. Remove the isolators (1).
  3. Remove the resonator (2) from the vehicle.
