Installation - Without MANIVERTER

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

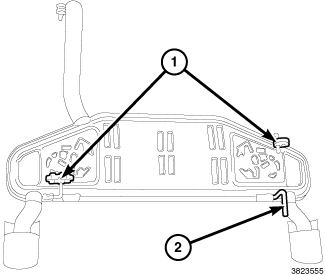

Fig 1: Muffler Isolators & Right Rear Hanger

Courtesy of CHRYSLER GROUP, LLC

Start at the right rear muffler support (2) and feed the muffler mounted support into the body mounted isolator.
Slide the muffler mounted rubber isolators (1) onto the body mounted pins.

Fig 2: Exhaust Pipe, Muffler Pipe & Clamp
Courtesy of CHRYSLER GROUP, LLC
Attach the muffler (2) to the exhaust pipe (3).
Tighten the clamp (1) to 55 N.m (41 ft. lbs.).
Check for leaks.
