Installation - With MANIVERTER

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

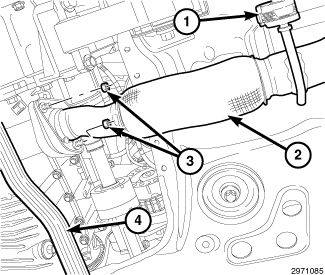

Fig 1: Muffler Pipe Flange To Maniverter Flange Mounting Nuts
GC0152357Courtesy of CHRYSLER GROUP, LLC
  1. Position the exhaust assembly into position.
  2. Position a suitable jack stand to help aid in installing the exhaust assembly.
  3. Install new gasket at the muffler to maniverter flange and install nuts (3). Tighten nuts to 25 N.m (18 ft. lbs.).

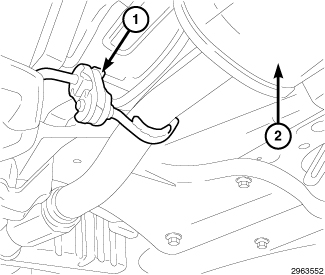

    Fig 2: Front Muffler Isolator
    GC0152343Courtesy of CHRYSLER GROUP, LLC
  4. Install the front muffler isolator (1).
    Fig 3: Rear Muffler Isolator
    GC0152356Courtesy of CHRYSLER GROUP, LLC
  5. Install the rear muffler isolator (1).

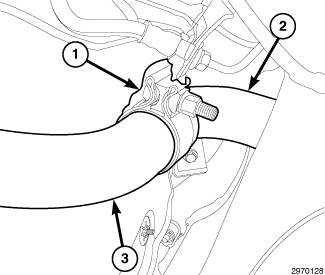

    Fig 4: Exhaust Pipe, Muffler Pipe & Clamp
    GC0152349Courtesy of CHRYSLER GROUP, LLC
  6. Install the resonator inlet pipe (2) onto the muffler outlet pipe (3).
  7. Tighten strap clamp (1) to 55 N.m (40 ft. lbs.).
  8. Lower vehicle.
  9. Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
  10. Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
