Coil, Ignition: Removal: Removal

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Engine Cover

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Remove the engine cover (1).

Fig 2: Air Cleaner Body Assembly
Courtesy of CHRYSLER GROUP, LLC
Remove the air cleaner body (6). Refer to BODY, AIR CLEANER, REMOVAL .

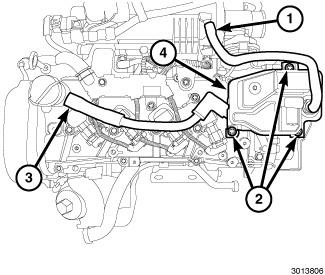

Fig 3: PCV Hose, Bolts, Vent Hose & Oil Separator Housing
Courtesy of CHRYSLER GROUP, LLC
Disconnect the PCV hose (1) from the intake manifold.
Disconnect the vent hose (3) from the oil filler neck.
Remove the three bolts (2) and remove the oil separator housing (4) from the cylinder head cover.

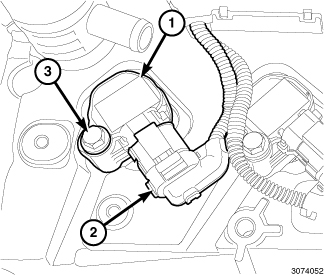

Fig 4: Ignition Coil, Connector & Bolt
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Number 1 cylinder ignition coil shown in illustration, all others similar.
Unlock and disconnect the electrical connector (2) from the ignition coil.
Remove the ignition coil mounting bolt (3).
Pull the ignition coil (1) from cylinder head cover opening with a slight twisting action.
