Tank, Fuel: Removal: Removal

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Access Cover, Connector & Screws

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Remove the fuel pump module (3). Refer to MODULE, FUEL PUMP, REMOVAL .
Remove the fuel from the fuel tank. Refer to STANDARD PROCEDURE .
Replace the fuel access hole cover to reduce fuel odor.
Raise and support the vehicle. Refer to HOISTING .

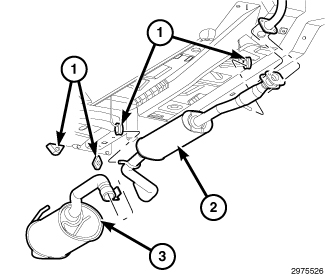

Fig 2: Resonator/Pipe Assembly, Muffler/Pipe Assembly & Support Isolators
Courtesy of CHRYSLER GROUP, LLC
Remove the muffler (2) and resonator (3). Refer to MUFFLER, EXHAUST, REMOVAL .

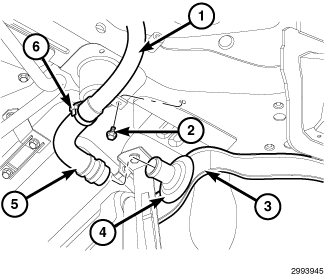

Fig 3: Fuel Tank, Filler Tube, Connector Hose, Clamp & Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove the fuel filler connector (5) from the fuel tank (3).

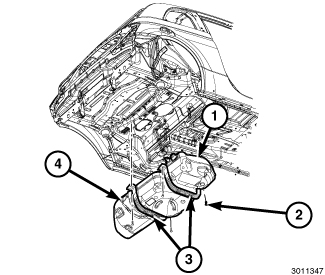

Fig 4: Fuel Tank, Straps & Bolts
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The heat shield and the fuel tank support straps are part of the fuel tank and do not require being removed from the tank. If the fuel tank is being replaced. The new tank will have the support straps and heat shield mounted.
Using a suitable jack. Support the fuel tank.
Remove the fuel tank (1) from the vehicle.
