Pump, Water: Removal: 1.4L

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system.
  2. Remove the timing belt. For 1.4L 16-Valve engine, refer to BELT, TIMING, REMOVAL . For 1.4L 16-Valve turbo engine, refer to BELT, TIMING, REMOVAL .
    Fig 1: Water Pump Screws & Nut
    GC0152344Courtesy of CHRYSLER GROUP, LLC
  3. Remove the screws (1) and the nut (2) securing the water pump to the engine block.

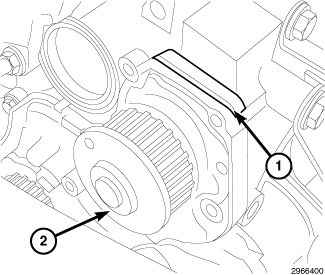

    Fig 2: Water Pump & Upper Tab
    GC0152346Courtesy of CHRYSLER GROUP, LLC
  4. Remove the water pump (2) from the engine block by lightly prying at the upper tab (1) located on the pump assembly.
