Heater, Engine Block: Installation: 1.4L
WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

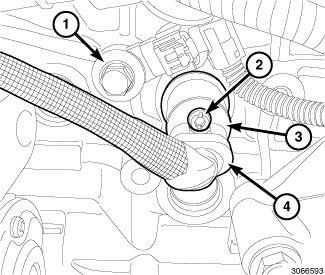

- Thoroughly clean cylinder block core hole and block heater seat.
- Insert block heater assembly (3) into the block.
- With block heater fully seated, tighten bolt (2) to 3 N.m (27 in. lbs.).
- Connect power cord to block heater (2).
