Home >> Fiat >> 2016 >> 500 Turbo, Standard Trans >> Repair and Diagnosis >> External Pages >> Different car >> Section 43 (Engine Cooling System - 500 - Except Electric) >> Accessory Drive >> Belt, Serpentine >> Removal >> Without A/C

Without A/C

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Care must be used when removing the accessory drive belt. Always wear appropriate eye and hand protection and use extreme caution when working with the belt.

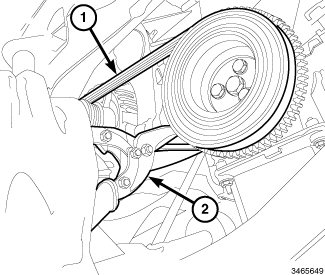

Fig 1: Cutting Belt
GC0153540Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Hoist the vehicle.
  3. Remove the right front wheel.
  4. Remove the inner splash shield.
    NOTE:

    The drive belt is a one time use only. If the belt is removed for repairs. It must be replaced with a new belt.

  5. Using care. Cut the belt (1) and discard.
