Home >> Fiat >> 2016 >> 500 Turbo, Standard Trans >> Repair and Diagnosis >> External Pages >> Different car >> Section 43 (Engine Cooling System - 500 - Except Electric) >> Accessory Drive >> Belt, Serpentine >> Installation >> Without A/C

Without A/C

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Always wear appropriate eye and hand protection and use extreme caution when working with the belt.

Fig 1: Supplied Belt Installer Tool
GC0153541Courtesy of CHRYSLER GROUP, LLC
NOTE:

A supplied belt installer tool must be used to aid in proper installation of the belt. Failure to use the tool may result in damage to the belt.

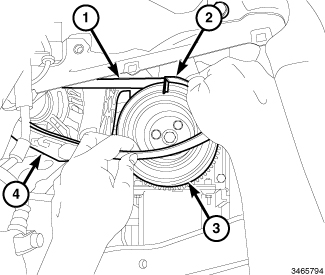

Fig 2: Accessory Drive Belt, Alternator, Vibration Dampener & Belt Installer Tool
GC0153542Courtesy of CHRYSLER GROUP, LLC
  1. Install the accessory drive belt (1) around the alternator (4).
  2. Position the belt onto the vibration dampener (3).
  3. Position the belt installer tool (2) between the belt and vibration dampener.

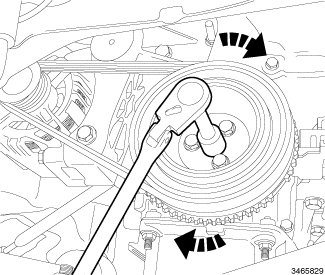

    Fig 3: Rotating Crankshaft Clockwise
    GC0153543Courtesy of CHRYSLER GROUP, LLC
  4. Rotate the crankshaft clockwise until the belt is properly seated onto the vibration dampener.
  5. Install the inner wheel splash shield.
  6. Install the right front wheel.
  7. Lower vehicle.
  8. Connect the negative battery cable.
