Belt, Serpentine: Installation: 1.4L

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

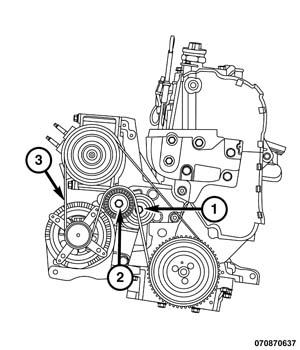

Fig 1: Belt Tensioner, Pulley Center Bolt & Drive Belt Routing (1.4L)

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Do not let the tensioner arm snapback to the fully extended position, severe damage may occur to the tensioner.

Position the serpentine belt (3) around the pulleys.
Rotate the tensioner center bolt (2) counterclockwise
Position the belt around the tensioner pulley.
Verify the belt is properly positioned around all of the pulleys.

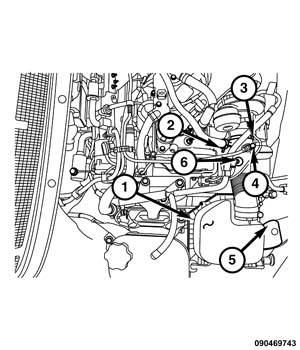

Fig 2: EVAP Hose Quick Release Fitting, Wastegate Solenoid Vent Hose, Clamps, Screws & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the air cleaner assembly (1).
