1.4L I4 8V E100

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

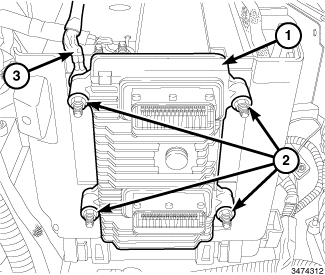

Fig 1: Powertrain Control Module (PCM)
GC0153571Courtesy of CHRYSLER GROUP, LLC
  1. Install the Powertrain Control Module (PCM) (1) to the battery tray with four nuts (2) and ground strap (3). Tighten nuts (2) to 5 N.m (44 in. lbs.).

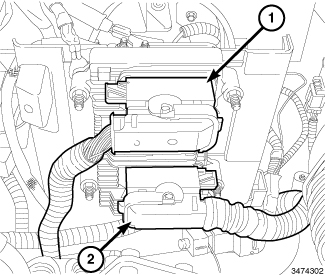

    Fig 2: Powertrain Control Module (PCM) Electrical Connectors
    GC0153570Courtesy of CHRYSLER GROUP, LLC
  2. Connect the Powertrain Control Module (PCM) electrical connectors (1 and 2).
  3. Install the battery.
    NOTE:

    If the original Vehicle Identification Number (VIN) and original vehicle mileage is not programed into the PCM, a Diagnostic Trouble Code (DTC) may be set.

  4. If installing a new PCM, use a diagnostic scan tool to reprogram the new PCM with the vehicles original VIN and mileage. Refer to MODULE, POWERTRAIN CONTROL, MODULE PROGRAMMING .
