Pump, Engine Oil: Installation: Installation

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Oil Pump, Plunger, Spring, O-Ring Seal & Oil Pressure Regulator Cap

Courtesy of CHRYSLER GROUP, LLC

If removed, install the plunger (2), spring (3) and oil pressure regulator cap (5) with a new O-ring seal (4) to the oil pump (1).

Fig 2: Oil Pump Gasket
Courtesy of CHRYSLER GROUP, LLC
Install a new oil pump gasket (1) to the oil pump. Roll the three gasket retaining tabs over the pump flange at the indicated locations.

Fig 3: RTV Sealant & Oil Filter Housing Seal
Courtesy of CHRYSLER GROUP, LLC
Install a new oil filter housing seal (2) onto the oil filter housing.
Clean the cylinder block and bedplate mating surfaces with isopropyl alcohol in preparation for sealant application.
CAUTION:
Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Engine Sealant RTV Silicone Rubber Adhesive may result in engine fluid leakage.

CAUTION:
Following the application of Mopar® Engine Sealant RTV Silicone Rubber Adhesive to the gasket surfaces, the components must be assembled within 10 minutes and the attaching fasteners must be tightened to specification within the next 10 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.
Apply a 2 to 3 mm wide bead of Mopar® Engine Sealant RTV Silicone Rubber Adhesive to the two cylinder block to bedplate T-joints (1) as shown in illustration.

Fig 4: Oil Pump & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the oil pump and gasket (1) with seven bolts (2) hand tight.

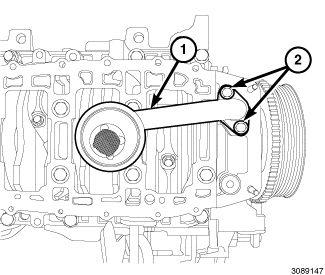

Fig 5: Alignment Fixture & Bolts
Courtesy of CHRYSLER GROUP, LLC
Attach the (special tool #8225, Alignment Fixture) (2) to the oil pan mounting flange using the oil pan bolts (1). Tighten the bolts to 9 N.m (80 in. lbs.).
NOTE:
Make sure that the "2.7L" stamped on the alignment fixture is facing the cylinder block (flat side of tools against oil pan mounting flange).

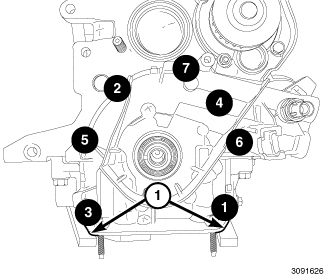

Fig 6: Oil Pump Flange Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Allow the oil pump to center itself on the crankshaft and position the oil pump so that the distance between the oil pump flange and the alignment fixture is equal on both sides (1).
NOTE:
Do not force the oil pump flange down against the alignment fixture.
While maintaining this alignment, tighten the seven bolts in the sequence shown in illustration to 10 N.m (89 in. lbs.).

Fig 7: O-Ring Seals
Courtesy of CHRYSLER GROUP, LLC
Install new O-ring seals (1 and 2) on the oil filter housing to oil pump bolt.

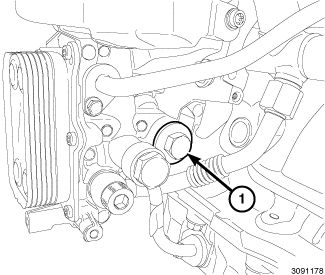

Fig 8: Oil Pump Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the oil filter housing to oil pump bolt (1) and tighten to 45 N.m (33 ft. lbs.).

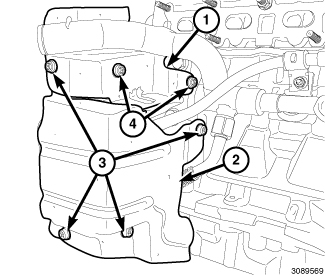

Fig 9: Upper And Lower Oil Cooler Housing Heat Shields & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Install the lower oil cooler housing heatshield (2) with four bolts tightened to 3 N.m (26 in. lbs.).

Fig 10: Oil Seal, Installer & Bolt
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
When the timing belt is removed and the cylinder head is still installed, DO NOT rotate the camshaft or crankshaft without first locating the proper crankshaft position. Failure to do so will result in valve and/or piston damage.
If removed, install the front crankshaft oil seal (1). Refer to SEAL, CRANKSHAFT OIL, FRONT, INSTALLATION .
Install the timing belt and sprockets. Refer to SPROCKET(S), TIMING BELT AND CHAIN, INSTALLATION .
NOTE:
The oil pressure switch has a lock patch on the threads and if removed can not be reinstalled.
If removed, install a new oil pressure switch. Refer to SWITCH, OIL PRESSURE, INSTALLATION .

Fig 11: Oil Pick-Up Tube & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the oil pump pick-up (1) and the oil pan. Refer to PICK-UP, OIL PUMP, INSTALLATION .

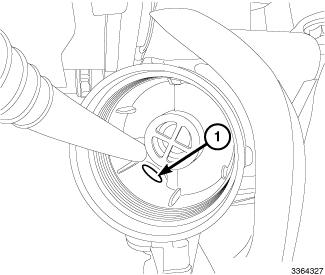

Fig 12: Side Port (Filter Inlet)
Courtesy of CHRYSLER GROUP, LLC

NOTE:
A new engine oil pump must be primed with oil before engine operation.
If installing a new engine oil pump, remove the oil filter and prime the new pump through the oil filter housing with approximately 0.5 liter (0.5 quart) of engine oil. Direct the oil into the side port (filter inlet) (1) as shown in illustration and not the center port (filter outlet). Refer to FILTER, ENGINE OIL, REMOVAL .
If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to STANDARD PROCEDURE .
Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
Fill the cooling system. Refer to STANDARD PROCEDURE .
Start and run the engine until it reaches normal operating temperature. Check cooling system for correct fluid level. Refer to STANDARD PROCEDURE .
NOTE:
The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system. For example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components. Refer to appropriate Engine Electrical Diagnostics article.
