With Manual Transmission

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Lower Air Dam/Belly Pan

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the battery negative cable.
Raise and support the vehicle. Refer to HOISTING .
Remove the belly pan. Refer to BELLY PAN, REMOVAL .
Drain the engine oil. Refer to STANDARD PROCEDURE .
Remove the exhaust crossunder pipe. Refer to EXHAUST SYSTEM - 500 article.

Fig 2: Transmission Bell Housing Bolts, Transmission Stud, Flywheel Dust Cover & Nut
Courtesy of CHRYSLER GROUP, LLC
Remove three bolts (1) from the flywheel dust cover.
Remove the two lower transmission bell housing bolts (2).

Fig 3: Flywheel Dust Cover & Bolt
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The flywheel dust cover (2) is bolted to the oil pan and cannot be removed at this time.

Fig 4: Oil Pan Flange Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove fourteen bolts (1), two nuts and two studs (2) from the flange of the oil pan.
Using the four indicated pry points, carefully remove the oil pan and flywheel dust cover.

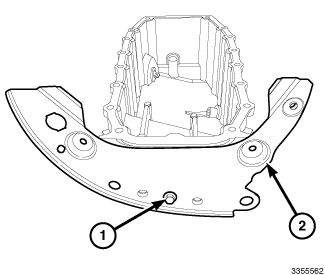

Fig 5: Flywheel Dust Cover & Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove the bolt (1) and the flywheel dust cover (2) from the oil pan.

Fig 6: Oil Pan Sealant Locations
Courtesy of CHRYSLER GROUP, LLC
Remove all residual sealant (1) from the oil pan, engine block, oil pump and rear seal retainer. Refer to CLEANING .
