Jet, Piston Oil Cooler: Description: Description
WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

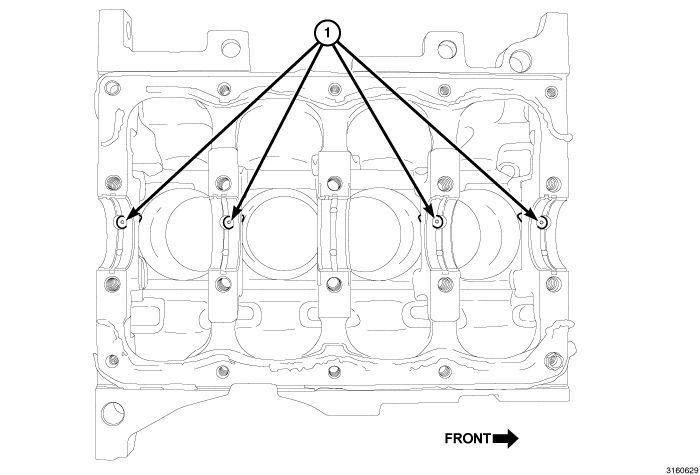

The 1.4L engine has four engine blocked-mounted oil jets (1) installed to cool the underside of each piston. The oil jets are fed by the main oil gallery, and spray upward on the bottom of the pistons and cylinder walls. Each jet has a check valve which closes to maintain ample oil pressure at idle. All four oil jets are identical and are a press fit to the engine block.
