Manual Transmission

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Lower Air Dam/Belly Pan
GC0082359Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle. Refer to HOISTING .
  2. Remove the belly pan. Refer to BELLY PAN, REMOVAL .
    Fig 2: Tunnel Support Brace & Bolts
    GC0152449Courtesy of CHRYSLER GROUP, LLC
  3. Remove four bolts (1) and the tunnel support brace (2).

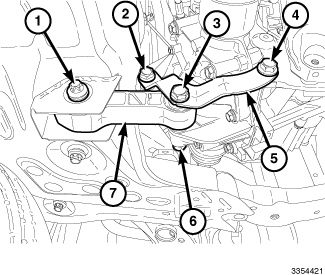

    Fig 3: Rear Engine Mount Bracket, Isolator & Fasteners
    GC0153301Courtesy of CHRYSLER GROUP, LLC
  4. Remove the rear engine mount bracket bolt (3) and nut (6).
  5. Remove the bolt (1) and remove the rear engine mount isolator (7).
  6. If required, remove the two bolts (2 and 4) and the rear engine mount bracket (5).
