With Automatic Transmission

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Engine Hoist & Load-Leveling Lifting Sling
GC0152420Courtesy of CHRYSLER GROUP, LLC
  1. Remove the engine and transmission from the vehicle. Refer to REMOVAL .
    Fig 2: Starter Assembly, Connector & Fasteners
    GC0153134Courtesy of CHRYSLER GROUP, LLC
  2. Remove the transmission from the engine. Refer to REMOVAL .
  3. Remove the starter assembly (5). Refer to STARTER, REMOVAL .

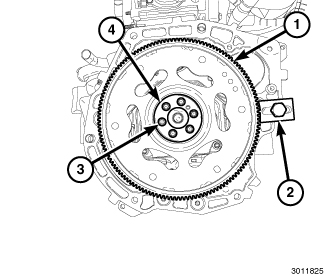

    Fig 3: Flexplate & Bolts
    GC0152424Courtesy of CHRYSLER GROUP, LLC
  4. Remove the flexplate (1). Refer to FLEXPLATE, REMOVAL .
    Fig 4: Transmission Adapter Plate & Fasteners
    GC0152425Courtesy of CHRYSLER GROUP, LLC
  5. Remove three bolts (3 and 4), one bolt and nut (2) and the transmission adapter plate (1).

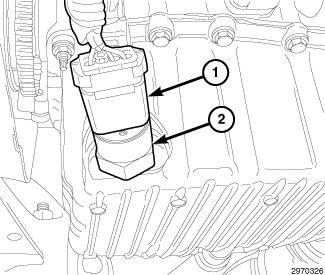

    Fig 5: Oil Viscosity Sensor & Connector
    GC0152351Courtesy of CHRYSLER GROUP, LLC
  6. Drain the engine oil. Refer to STANDARD PROCEDURE .
  7. Remove the viscosity sensor (2). Refer to SENSOR, OIL VISCOSITY, REMOVAL .

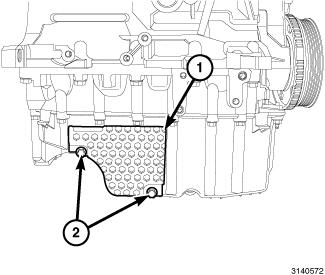

    Fig 6: Blocker Plate & Bolts
    GC0152878Courtesy of CHRYSLER GROUP, LLC
  8. Remove two bolts (2) and the blocker plate (1) from the oil pan.
    Fig 7: Oil Pan Flange Fasteners
    GC0152688Courtesy of CHRYSLER GROUP, LLC
  9. Remove fourteen bolts (1) and two nuts (2) from the flange of the oil pan.
  10. Using the four indicated pry points, carefully remove the oil pan.
  11. Remove all residual sealant from the oil pan, engine block, oil pump and rear seal retainer. Refer to CLEANING .
