Cooler, Oil: Installation: Installation

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

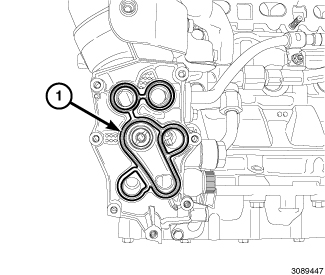

Fig 1: Oil Cooler Seal
GC0152697Courtesy of CHRYSLER GROUP, LLC
  1. Install the new oil cooler seal (1) onto the oil filter housing.

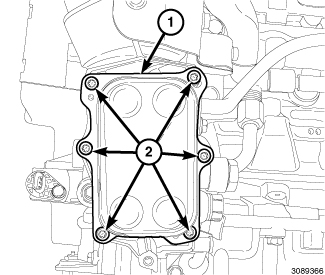

    Fig 2: Oil Cooler & Bolts
    GC0152696Courtesy of CHRYSLER GROUP, LLC
  2. Position the oil cooler (1) on the oil filter housing.
  3. Install six bolts (2) and tighten to 9 N.m (80 in. lbs.).
    Fig 3: Upper And Lower Oil Cooler Housing Heat Shields & Fasteners
    GC0152698Courtesy of CHRYSLER GROUP, LLC
  4. Install the lower oil cooler housing heatshield (2) with four bolts (3) tightened to 3 N.m (26 in. lbs.).
  5. Fill the engine crankcase with the proper oil to the correct level. Refer to STANDARD PROCEDURE .
  6. Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
  7. Fill the cooling system. Refer to STANDARD PROCEDURE .
  8. Operate the engine until it reaches normal operating temperature. Check cooling system for correct fluid level. Refer to STANDARD PROCEDURE .
