With Manual Transmission
Whenever the crankshaft is replaced, the rear crankshaft oil seal must also be replaced. Failure to do so may result in engine fluid leakage.
- Inspect the crankshaft to make sure there are no nicks or burrs on the seal surface (1).
- Clean the seal retainer, cylinder block and bedplate mating surfaces with isopropyl alcohol in preparation for sealant application.CAUTION:
Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Engine Sealant RTV Silicone Rubber Adhesive may result in engine fluid leakage.
CAUTION:Following the application of Mopar® Engine Sealant RTV Silicone Rubber Adhesive to the gasket surfaces, the components must be assembled within 10 minutes and the attaching fasteners must be tightened to specification within the next 10 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.
- Apply a 2 to 3 mm wide bead of Mopar® Engine Sealant RTV Silicone Rubber Adhesive (1) to the two cylinder block to bedplate T-joints as shown in illustration.
- Attach the (special tool #8225, Alignment Fixture) (1) to the oil pan mounting flange using the oil pan bolts (2). Tighten the bolts to 9 N.m (80 in. lbs.).NOTE:
Make sure that the "2.7L" stamped on the alignment fixture is facing the cylinder block (flat side of tools against oil pan mounting flange).
Courtesy of CHRYSLER GROUP, LLC
NOTE:It is not necessary to lubricate the seal or the crankshaft when installing the seal retainer. Residual oil following installation can be mistaken for seal leakage.
- Carefully install the (special tool #10306, Guide, Rear Crankshaft Oil Seal) (1) into the rear seal retainer (3).NOTE:
Make sure that the garter spring (2) is intact around the inside of the oil seal lip.
- Carefully position the seal retainer and seal installer on the crankshaft and push firmly into place on the engine block (during this step, the seal installer will be pushed from the oil seal as a result of installing the seal retainer).
- Verify that the seal lip (2) on the retainer is uniformly curled inward toward the engine on the crankshaft (1).
- Allow the seal retainer to center itself on the crankshaft and position the seal retainer so that the distance between the seal retainer flange and the alignment fixture is equal on both sides (1).NOTE:
Do not force the seal retainer flange down against the alignment fixture.
- While maintaining this alignment, install the six seal retainer bolts. Tighten the six bolts in two steps following the sequence shown in illustration:
- Step 1: All to 5 N.m (44 in. lbs.).
- Step 2: All to 10 N.m (89 in. lbs.).
- Install the crankshaft position sensor (1) with mounting screw.CAUTION:
Make sure the CKP sensor is firmly seated against the alignment boss prior to rotating the fastener. The sensor will be damaged if the fastener is used to align or draw the sensor into position.
- Tighten the mounting screw to 4 N.m (35 in. lbs.).
- Position the slot over the alignment pin (2) and install the tone wheel (1) on the crankshaft.
- Install the flywheel. Refer to FLYWHEEL, INSTALLATION .
- Install the clutch pressure plate and disc. Refer to DISC, CLUTCH, INSTALLATION .
- Install the transmission on the engine with the upper bell housing bolts (1) tightened to 60 N.m (44 ft. lbs.).

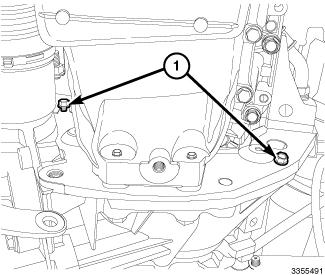

- Install the nut (1) and stud (2) and tighten to 60 N.m (44 ft. lbs.).
- Clean the oil pan, engine block, oil pump and rear seal retainer mating surfaces with isopropyl alcohol in preparation for sealant application.CAUTION:
Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Engine Sealant RTV Silicone Rubber Adhesive may result in engine fluid leakage.
CAUTION:Following the application of Mopar® Engine Sealant RTV Silicone Rubber Adhesive to the gasket surfaces, the components must be assembled within 10 minutes and the attaching fasteners must be tightened to specification within the next 10 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.
- Apply a 2 to 3 mm wide bead of Mopar® Engine Sealant RTV Silicone Rubber Adhesive to the oil pan as shown in illustration in the following locations:
- Two oil pump to engine block T-joints (3)
- Two rear seal retainer to engine block T-joints (2)
- If removed, install the flywheel dust cover (2) to the oil pan. Tighten the bolt (1) to 9 N.m (80 in. lbs.).
- Install the oil pan with fourteen bolts (1), two studs and two nuts (2) hand tight.
- Install the two lower transmission bell housing bolts (3) and tighten to 40 N.m (30 ft. lbs.).
- Tighten the sixteen oil pan fasteners in two steps following the sequence shown in illustration:
- Step 1: All to 4 N.m (35 in. lbs.).
- Step 2: All to 9 N.m (80 in. lbs.).
- Install the two bolts (1) to the flywheel dust cover and tighten to 9 N.m (80 in. lbs.).
- Install the blocker plate (1) with two bolts (2) tightened to 9 N.m (80 in. lbs.).
- Install the viscosity sensor (2). Refer to SENSOR, OIL VISCOSITY, INSTALLATION .
- Install the starter assembly (5) and connect the electrical wiring (2). Refer to STARTER, INSTALLATION .
- Install the engine and transmission in the vehicle. Refer to INSTALLATION .
- If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to STANDARD PROCEDURE .
- Fill the cooling system. Refer to STANDARD PROCEDURE .
- Fill the transmission. Refer to FLUID .
- Evacuate and charge the refrigerant system. Refer to STANDARD PROCEDURE .
- Start and run the engine until it reaches normal operating temperature. Check cooling system for correct fluid level. Refer to STANDARD PROCEDURE
.NOTE:
The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system. For example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components. Refer to appropriate Engine Electrical Diagnostics article.
