Engine Block: Crankshaft: Description: Description
WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

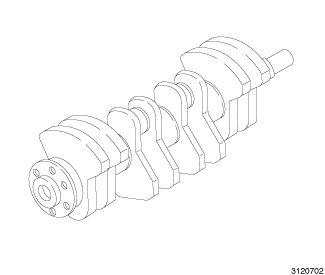

The crankshaft is made from induction hardened forged steel. Eight counterweights at 180° balance the crankshaft rotary mass. The main journals are crossed drilled for rod bearing lubrication. The crankshaft is supported by five select fit main bearings with the center bearing serving as the thrust washer location. Both the front and rear seals are a single piece design and are mounted to the oil pump and cylinder block.
