Lifter(S), Hydraulic: Installation: Installation
WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the hydraulic lifters are being reused, reassemble them into their original locations.
- Verify that the hydraulic lifters are at least partially full of oil. There should be little or no plunger travel when the hydraulic lifter is depressed.

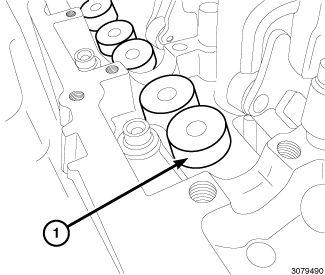

- Install the hydraulic lifter(s) (1).
- Install the camshaft(s). Refer to CAMSHAFT, ENGINE, INSTALLATION .
- Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
