Air Cleaner: Installation: Installation

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

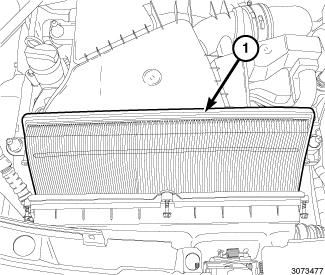

Fig 1: Air Cleaner Element

Courtesy of CHRYSLER GROUP, LLC

Install the air cleaner element (1) to the air cleaner housing.

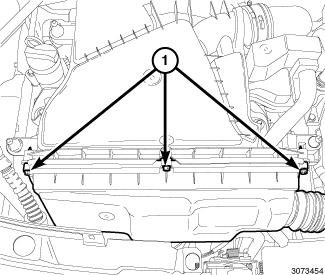

Fig 2: Air Cleaner Body Cover Screws
Courtesy of CHRYSLER GROUP, LLC
Install the air cleaner body cover (2) with three screws (1) tightened to 4 N.m (35 in. lbs.).

Fig 3: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
