Tube, Spark Plug: Installation: Installation

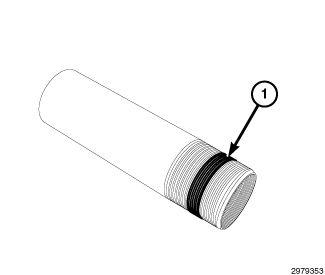

Fig 1: Spark Plug Tube Sealant

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The spark plug tube is pre-treated with sealant (1), therefore it must be replaced each time it is removed. Do not add any additional sealant to the threads.

Fig 2: Spark Plug Tube Remover/Installer & Tube

Courtesy of CHRYSLER GROUP, LLC

Position the spark plug tube (2) into the cylinder head. Using the (special tool #10280, Remover/Installer, Spark Plug Tube) (1), tighten the tube to 41 N.m (30 ft. lbs.).

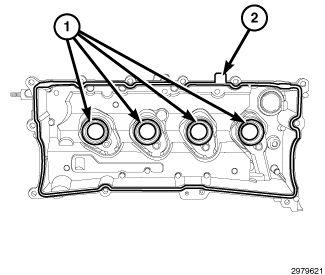

Fig 3: Cylinder Head Cover Gasket & Spark Plug Tube Seals
Courtesy of CHRYSLER GROUP, LLC
If required, install a new spark plug tube seal (1).
Install the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, INSTALLATION .
Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
