Shifter, Transmission: Disassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Fig 1: Removing/Installing Backup Lamp Switch

Courtesy of CHRYSLER GROUP, LLC

Place the shifter in soft jaw vise.
Remove the backup lamp switch.

Fig 2: Removing/Installing Outer Shifter Selector Lever Nut
Courtesy of CHRYSLER GROUP, LLC
Remove the outer shifter selector lever nut and remove the lever.

Fig 3: Removing/Installing Shifter Selector Shaft O-Ring
Courtesy of CHRYSLER GROUP, LLC
Remove the shifter selector shaft complete with O-ring.

Fig 4: Aligning Lever To Roll Pin
Courtesy of CHRYSLER GROUP, LLC
Position lever to allow access to roll pin and remove the roll pin.

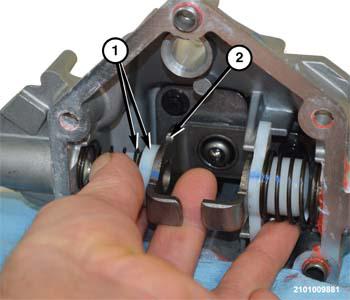

Fig 5: Identifying Bushing & Snap Ring
Courtesy of CHRYSLER GROUP, LLC
Gently pry the bushing (2) over to allow access to the selector shaft snap ring (1) and remove the snap ring.

Fig 6: Removing/Installing Selector Shaft
Courtesy of CHRYSLER GROUP, LLC
Remove the selector shaft from the shifter housing.

Fig 7: Removing/Installing Guide
Courtesy of CHRYSLER GROUP, LLC
Remove the guide.

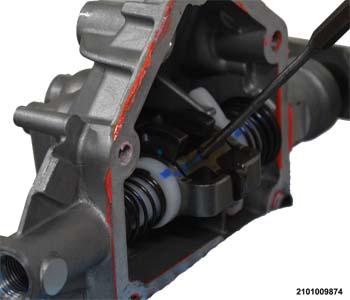

Fig 8: Removing Internal Selector Lever Assembly, Spring & Bushing
Courtesy of CHRYSLER GROUP, LLC
Remove the internal selector lever assembly (2) along with spring and bushing (1).

Fig 9: Removing/Installing Bushing & Spring
Courtesy of CHRYSLER GROUP, LLC
Remove bushing and spring.

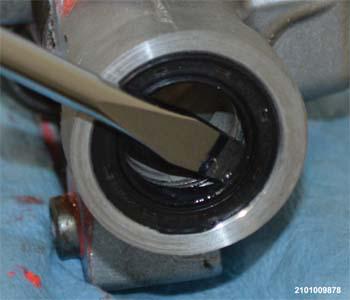

Fig 10: Removing Selector Shaft Oil Seal
Courtesy of CHRYSLER GROUP, LLC
Remove the selector shaft oil seal using a suitable tool.

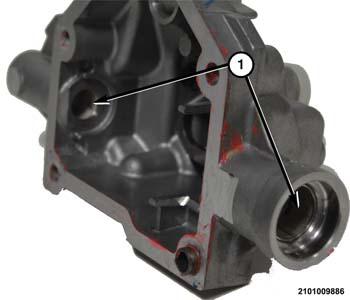

Fig 11: Identifying Bushings & Housing
Courtesy of CHRYSLER GROUP, LLC
Clean and inspect components, paying particular attention to sealing and bushing mating surfaces. If bushings in housing (1) are worn, the entire shifter assembly must be replaced.
