Manifold, Exhaust: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

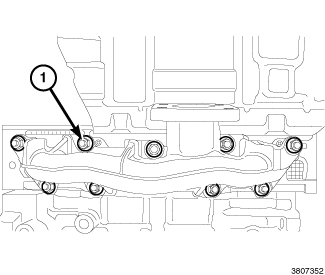

Fig 1: Exhaust Manifold Nuts

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The turbocharger and exhaust manifold must be removed from the cylinder head as an assembly.

Remove the turbocharger.

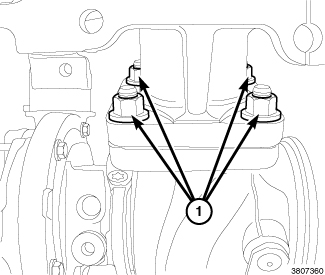

Fig 2: Manifold/Turbocharger Nuts
Courtesy of CHRYSLER GROUP, LLC
Remove and discard the four nuts (1).
Lift the manifold up and off of the turbocharger. Remove and discard the gasket.
