Jet, Piston Oil Cooler: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

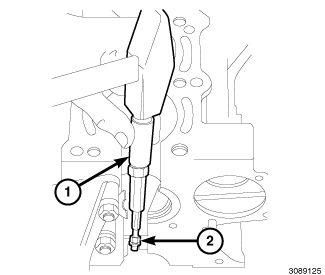

Fig 1: Driving Out Piston Oil Cooler Jet

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Piston oil cooler jet for cylinder one shown in illustration. Piston oil cooler jets for cylinders two, three and four are similar.

Remove the piston and connecting rod(s). Refer to ROD, PISTON AND CONNECTING, REMOVAL .
Remove the crankshaft. Refer to CRANKSHAFT, REMOVAL .
Using a suitable drift (1), drive the piston oil cooler jet(s) (2) from the engine block.
Discard the piston oil cooler jet(s), they are not reusable.
