Shifter, Transmission: Installation: Installation

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Aligning Shifter Forks

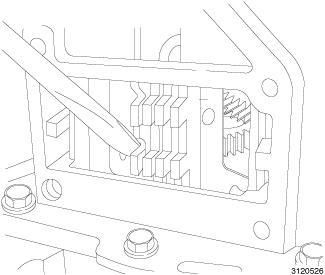

GC0152794Courtesy of CHRYSLER GROUP, LLC
  1. Align shifter rails.
    Fig 2: Identifying Shifter Fasteners

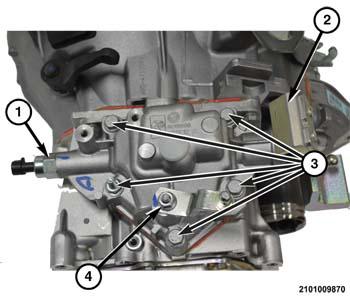

    GC0157922Courtesy of CHRYSLER GROUP, LLC
  2. Apply a uniform bead of Mopar / Fiat Case Sealer to the case side of the transaxle.

    Install the shifter assembly. Tighten bolts (3) to 20 N.m (15 Ft. lbs.)

    Fig 3: Shift Cable
    GC0152839Courtesy of CHRYSLER GROUP, LLC
  3. Install shifter cable to lever (1).
    Fig 4: Cable Retention Clip
    GC0152840Courtesy of CHRYSLER GROUP, LLC
  4. Connect the cable to mounting bracket (1).
    Fig 5: Shift Selector Cable
    GC0152746Courtesy of CHRYSLER GROUP, LLC
  5. Connect the shift selector cable (1) to the lever.
    Fig 6: Reverse Lamp Switch Connector
    GC0152745Courtesy of CHRYSLER GROUP, LLC
  6. Connect the reverse lamp switch connector (1).
  7. Install the battery tray. Refer to TRAY, BATTERY, INSTALLATION .
  8. Check the transmission fluid level and correct as needed. Refer to STANDARD PROCEDURE  .
