Shifter, Transmission: Assembly: Assembly

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

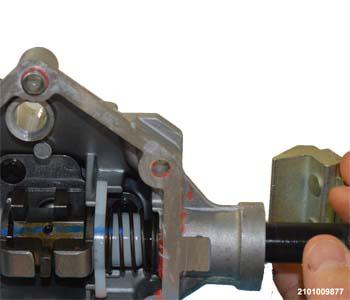

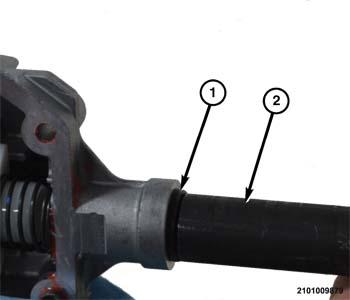

Fig 1: Identifying Selector Shaft & Seal

Courtesy of CHRYSLER GROUP, LLC

Install new selector shaft seal using an appropriate tool.

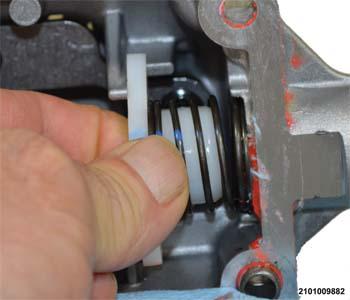

Fig 2: Removing/Installing Bushing & Spring
Courtesy of CHRYSLER GROUP, LLC
Install bushing and spring.

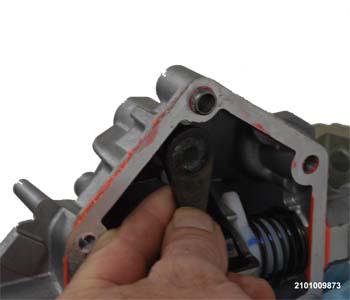

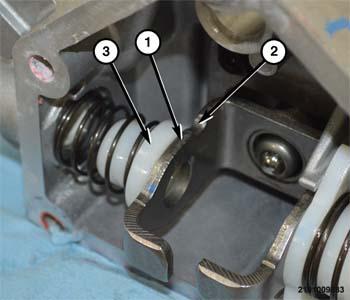

Fig 3: Identifying Spring, Bushing, Internal Selector Lever & Indexing Notch
Courtesy of CHRYSLER GROUP, LLC
Install the spring and bushing (3) and internal selector lever (1) at the same time. The indexing notch (2) should be facing up as shown in illustration.

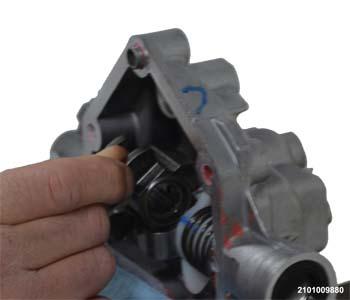

Fig 4: Removing/Installing Guide
Courtesy of CHRYSLER GROUP, LLC
Install the guide.

Fig 5: Removing/Installing Selector Shaft
Courtesy of CHRYSLER GROUP, LLC
Install the selector shaft, making sure the roll pin hole in the guide will align with hole in shaft.

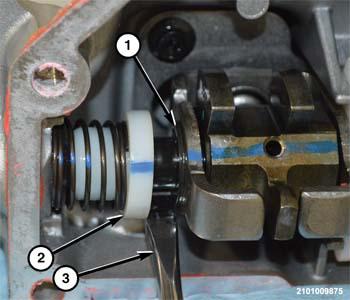

Fig 6: Identifying Bushing & Snap Ring
Courtesy of CHRYSLER GROUP, LLC
Gently pry bushing (2) over to install snap ring (1).

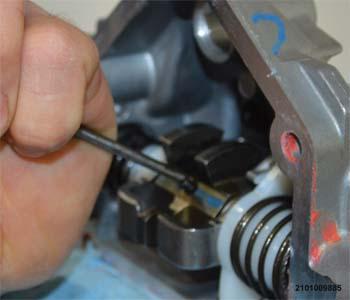

Fig 7: Installing Roll Pin
Courtesy of CHRYSLER GROUP, LLC
Install roll pin.

Fig 8: Removing/Installing Shifter Selector Shaft O-Ring
Courtesy of CHRYSLER GROUP, LLC
Install new O-ring on shifter shaft and install shaft into housing.

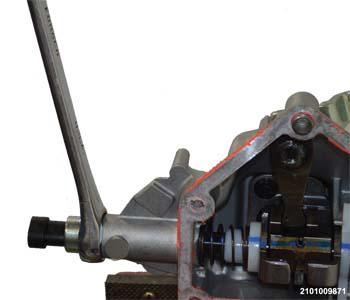

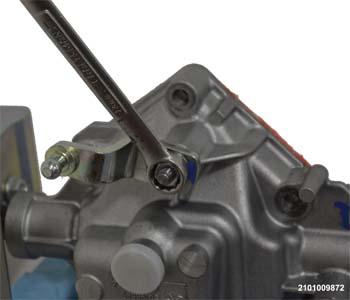

Fig 9: Removing/Installing Outer Shifter Selector Lever Nut
Courtesy of CHRYSLER GROUP, LLC
Install shifter lever and tighten to 16 N.m (142 in. lbs.).

Fig 10: Removing/Installing Backup Lamp Switch
Courtesy of CHRYSLER GROUP, LLC
Install back up lamp switch and tighten to 38 N.m (28 ft. lbs.).
Install shifter assembly on transmission.
