Line, A/C Suction: Removal: Removal

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Review the warnings and cautions for this system before performing the procedure. Failure to follow these instructions may result in serious injury or death.

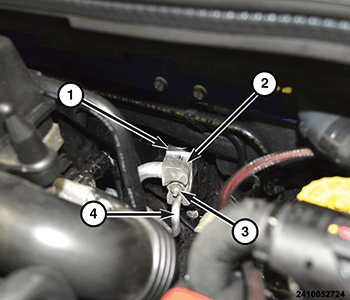

Fig 1: A/C Liquid Line, A/C Expansion Valve, A/C Suction Line & Nut
GC0169806Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine trim cover.
  3. Recover the refrigerant from the refrigerant system. Refer to STANDARD PROCEDURE  .
  4. Remove the nut (3) that secures the A/C suction line (2) to the A/C expansion valve (1).
  5. Disconnect the A/C suction line from the A/C expansion valve and remove and discard the O-ring seal.

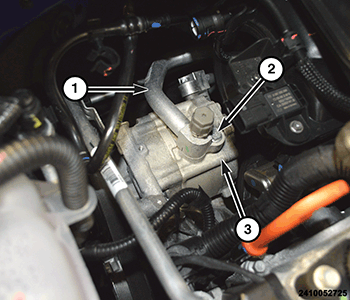

    Fig 2: A/C Suction Line, A/C Compressor & Bolt
    GC0169791Courtesy of CHRYSLER GROUP, LLC
  6. Remove the bolt (2) that secures the A/C suction line (1) to the A/C compressor (3).
  7. Disconnect the A/C suction line from the A/C compressor and remove and discard the O-ring seal.
  8. Remove the A/C suction line out from the bottom from the engine compartment.
  9. Install plugs in, or tape over, the opened refrigerant line fittings and expansion valve and compressor ports.
