Spark Plug: Removal: Removal

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

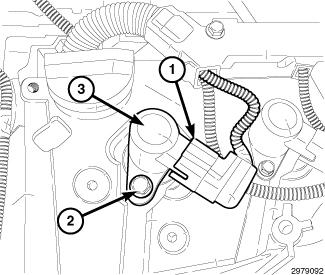

Fig 1: Ignition Coil, Connector & Bolt

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Number 1 cylinder ignition coil shown in illustration, all others similar.

Remove the ignition coil (2). Refer to COIL, IGNITION, REMOVAL .

Fig 2: Spark Plug Tube
Courtesy of CHRYSLER GROUP, LLC
Prior to removing the spark plug, spray compressed air into the cylinder head opening. This will help prevent foreign material from entering the combustion chamber.
CAUTION:
The spark plug tubes (1) are a thin wall design. Avoid damaging the spark plug tubes. Damage to the spark plug tube can result in oil leaks.
Remove the spark plug from the cylinder head using a quality thin wall socket with a rubber or foam insert.
Inspect the spark plug condition.
