Installation, Valve Body Wiring Harness

WARNING: This page is about a different variant/trim than selected.

Fig 1: Connector, O-Ring & Gasket

Courtesy of CHRYSLER GROUP, LLC

Install a NEW O-ring (1) and gasket (2) on the connector.

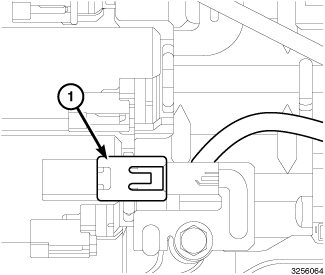

Fig 2: Connector Retaining Clip
Courtesy of CHRYSLER GROUP, LLC
Install the wiring harness in the transmission. Install the connector retaining clip (1.

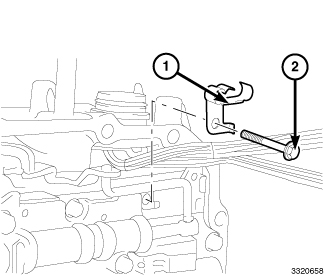

Fig 3: Wiring Harness Loom & Fastener
Courtesy of CHRYSLER GROUP, LLC
Install the wiring harness loom (1) and fastener (2). Tighten the fastener to 7 N.m (62 in. lbs.).

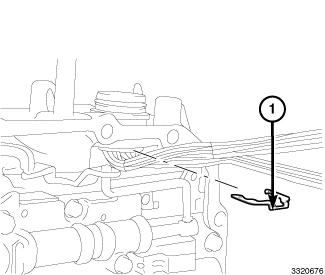

Fig 4: Speed Sensor Connector
Courtesy of CHRYSLER GROUP, LLC
Install the speed sensor connector (1) on the solenoid clamp.

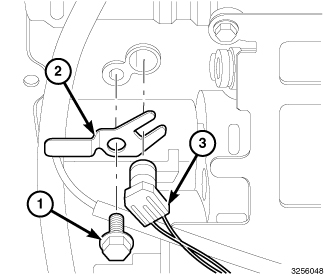

Fig 5: Oil Temperature Sensor, Clamp & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the sensor (3) in the valve body, install the oil temperature sensor clamp (2) and the bolt (1). Tighten the bolt to 7 N.m (62 in. lbs.).

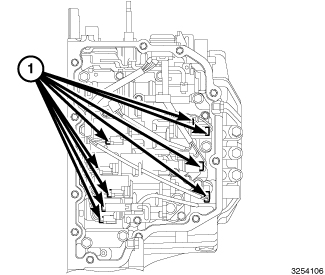

Fig 6: Solenoid/Speed Sensor Connectors
Courtesy of CHRYSLER GROUP, LLC
Connect the solenoid connectors and the speed sensor connectors (1).
Connect the wire harness to the clamps.
Install the side cover. Refer to VALVE BODY, INSTALLATION .
Install the Transmission Control Module (TCM). Refer to MODULE, TRANSMISSION CONTROL, INSTALLATION .
