Valve, Positive Crankcase Ventilation (PCV): Removal: 1.4L

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Engine Cover

Courtesy of CHRYSLER GROUP, LLC

On non-turbocharged engine, remove the engine cover (1).

Fig 2: Air Cleaner Assembly, Intake Hose, Fittings & Clamp
Courtesy of CHRYSLER GROUP, LLC
If equipped with a turbocharger, remove the air cleaner body (1). Refer to BODY, AIR CLEANER, REMOVAL . .

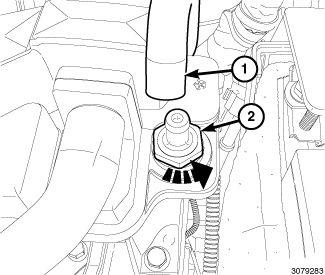

Fig 3: Removing PCV Valve
Courtesy of CHRYSLER GROUP, LLC
Remove the PCV hose (1).
Remove the PCV valve (2).
