Section 71 (C514 Manual Transmission (Service Information) 500 - 1.4L 16-Valve): Removal: Removal

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

Remove battery tray. Refer to TRAY, BATTERY, REMOVAL .
Remove air cleaner assembly. Refer to AIR CLEANER, REMOVAL .

Fig 1: Ground Strap
Courtesy of CHRYSLER GROUP, LLC
Remove the ground strap (1) from the transmission.

Fig 2: Reverse Lamp Switch Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect backup lamp switch connector (1).

Fig 3: Slave Cylinder Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the slave cylinder bolts (1) and secure the cylinder out of the way.

Fig 4: Shift Selector Cable
Courtesy of CHRYSLER GROUP, LLC
Disconnect shift selector cable (1) from the lever.

Fig 5: Cable Retention Clip
Courtesy of CHRYSLER GROUP, LLC
Disconnect the cable from the mounting bracket (1).

Fig 6: Shift Cable
Courtesy of CHRYSLER GROUP, LLC
Disconnect the shift cable (1) from lever.

Fig 7: Cable Mounting Bracket
Courtesy of CHRYSLER GROUP, LLC
Disconnect the cable from the bracket (1).

Fig 8: Upper Bell Housing Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove upper bell housing bolts (1).
Remove the upper starter bolts
Raise vehicle on hoist.
Remove the belly pan if equipped. Refer to BELLY PAN, REMOVAL .

Fig 9: Cross Car Cradle Brace
Courtesy of CHRYSLER GROUP, LLC
Remove the cross car cradle brace (1).
Drain the transmission fluid. Refer to STANDARD PROCEDURE .
Remove both half shafts. Refer to REMOVAL .
Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL .

Fig 10: Left Vertical Brace Bolts, Brake Hose Connector, Brake Hose & Banjo Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove two bolts (1) and the left vertical brace from the vehicle.

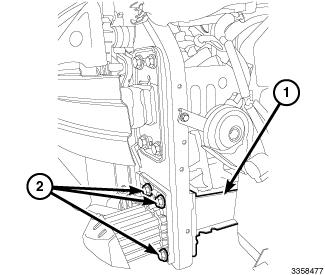

Fig 11: Left Lower Frame Extension & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove four bolts (2) and the left lower frame extension (1).

Fig 12: Oxygen Sensor Wire Loom/Clip
Courtesy of CHRYSLER GROUP, LLC
Disconnect the oxygen sensor wire from the loom/clip (1).
Carefully support the engine with a screw jack or the equivalent.
Install a suitable transmission jack to the transmission.

Fig 13: Left Side Mount Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the left side bolts (1) and mount.

Fig 14: Rear Transmission Mount Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove the rear transmission mount bolt (1) from the frame.

Fig 15: Rear Transmission Mount Bracket Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove the rear transmission mount bracket bolt (1) and bracket from transmission.

Fig 16: Transmission Bell Housing Bolts, Nut & Stud
Courtesy of CHRYSLER GROUP, LLC
Remove the remaining transmission bell housing bolts (3).
Remove the nut (1) and the stud (2) from the transmission case to facilitate removal.
Remove transmission from vehicle.
