Reverse Gear Power Flow

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

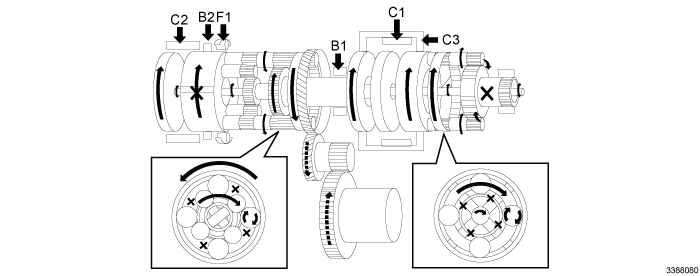

Fig 1: Reverse Gear Power Flow

Courtesy of CHRYSLER GROUP, LLC

REVERSE GEAR

SHIFTER POSITION	RANGE	SOLENOID						CLUTCH NUMBER			BRAKE NUMBER		ONE-WAY CLUTCH
SHIFTER POSITION	RANGE	SLC1	SLC2	SLC3	SLB1	S1	S2	C1	C2	C3	B1	B2	F1
P	PARK	-	X	X	-	X	-	-	-	-	-	-	-
R	HIGH TORQUE	-	X	-	-	X	-	-	-	X	-	X	-
R	LOW TORQUE	-	X	X	-	X	X	-	-	-	-	-	-
X = in operation
