Differential, Transaxle: Disassembly: Disassembly

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

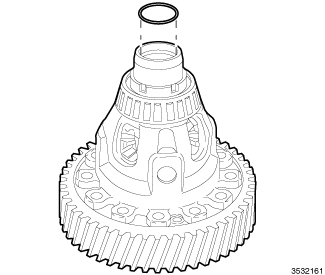

Fig 1: Carrier Side O-Ring

Courtesy of CHRYSLER GROUP, LLC

Remove the O-ring seal from the carrier side.

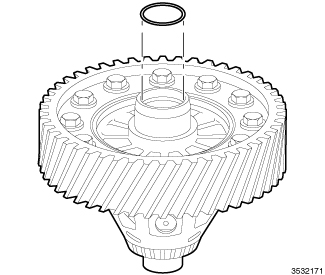

Fig 2: Gear Side O-Ring
Courtesy of CHRYSLER GROUP, LLC
Remove the O-ring seal from the gear side.

Fig 3: Removing Right Side Differential Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove right side differential bearing (1) using (special tool #C-293-PA, Puller, Press), (special tool #C-293-37, Block Set, Puller) and (special tool #C-4996, Adapter, Plug).

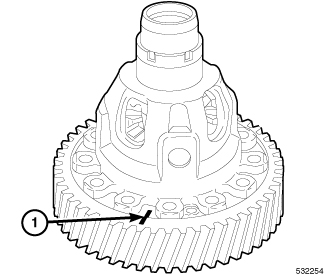

Fig 4: Indexing Marks On Ring Gear & Differential Case
Courtesy of CHRYSLER GROUP, LLC
Install indexing marks to the ring gear and the differential case prior to disassembly.

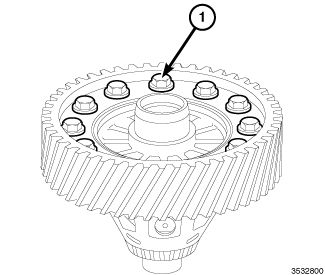

Fig 5: Ring Gear Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the ring gear bolts from the differential case, do not reuse the bolts.

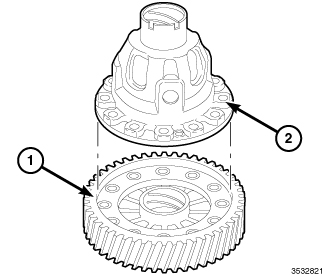

Fig 6: Ring Gear & Case
Courtesy of CHRYSLER GROUP, LLC
Separate the ring gear assembly from the case.

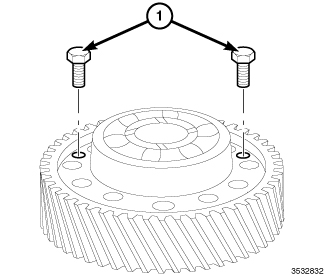

Fig 7: Separating Ring Gear & Left Side Case Assembly Using Bolts
Courtesy of CHRYSLER GROUP, LLC
Install additional indexing marks to the ring gear and the left side differential case prior to disassembly.
Use suitable bolts (1) to assist in separating the ring gear and left side case assembly.

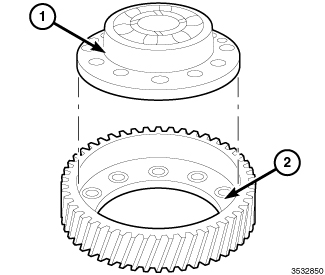

Fig 8: Ring Gear & Left Side Case Assembly
Courtesy of CHRYSLER GROUP, LLC
Separate the ring gear (2) from the left side case assembly (1).
WARNING:
Use tongs or welding gloves when handling heated components. Failure to follow these instructions will result in personal injury.

CAUTION:
Use only a bearing heater/hot plate and follow manufacture's instructions. Heat components to 100 - 149 Celsius (212° Min. - 300° Max Fahrenheit). Never use an open flame to heat components. Never leave components on heater for an extended amount of time. If component is discolored after heating, the component has been overheated and must not be used. Failure to follow these instructions will result in component damage.
Use a bearing heater to aid in removing the large left side differential bearing race.
Once sufficiently heated, support the left side case assembly on wooden blocks with the race facing downward.
Using a dead blow style hammer, strike the back side of the case until the bearing race has moved approximately 12mm (.5 inches).
Use a brass drift to finish removing the bearing race from the case.
