Valve, Surge: Installation: Installation

WARNING: This page is about a different car, the 2015 Fiat 500. However, it is still accessible from the selected car via links, so may be relevant.

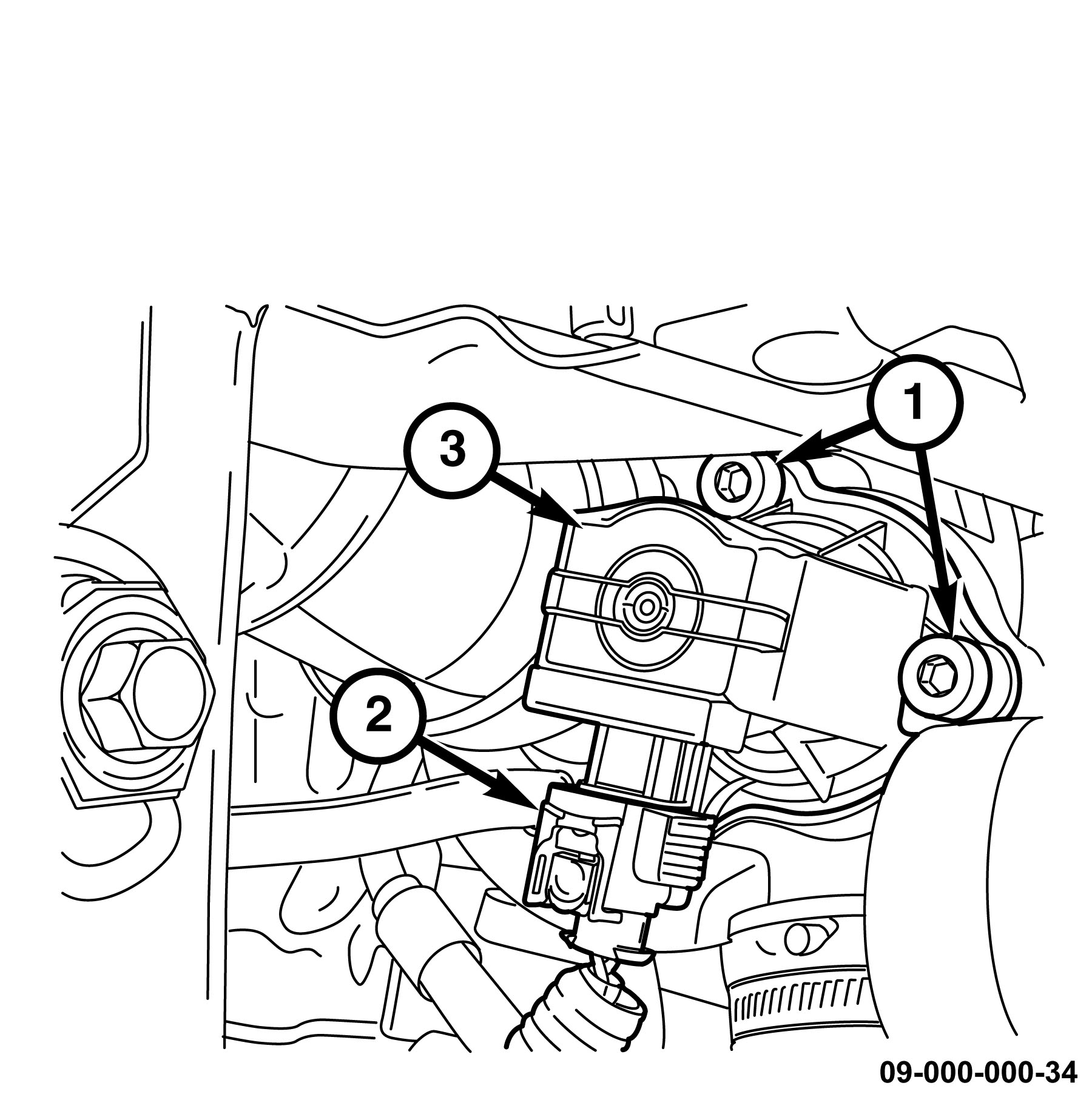

Fig 1: Surge Valve, Connector & Bolts
GC0156126Courtesy of CHRYSLER GROUP, LLC
  1. Install the surge valve into the turbocharger housing.
  2. Install the three bolts (1). Tighten the bolts and the nuts to 9 N.m (80 in. lbs.)
  3. Connect the surge valve connector (2).
    Fig 2: Upper Heat Shield Bolts & Nuts
    GC0153792Courtesy of CHRYSLER GROUP, LLC
  4. Install the upper heat shield.
  5. Install the new nuts (2) and the three bolts (1). Tighten to 9 N.m (80 in. lbs.)
    Fig 3: Air Cleaner Assembly, Intake Hose, Fittings & Clamp
    GC0153787Courtesy of CHRYSLER GROUP, LLC
  6. Install the air cleaner assembly (1)
  7. Connect the two vacuum fittings (4), tighten the clamp (3) at the air to turbocharger inlet tube.
  8. Connect the fresh air intake hose (2).
