Fiat 500

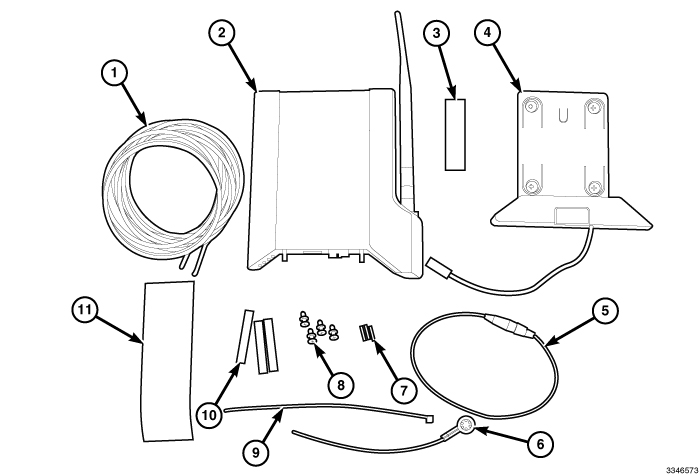

Fig 1: Wifi Router Components

Courtesy of CHRYSLER GROUP, LLC

PROCEDURE STEPS:

1. Disconnect the negative battery cable.
   Fig 2: Fasteners & Scuff Plate

   Courtesy of CHRYSLER GROUP, LLC
2. Open the liftgate.
3. Remove the fasteners (2) securing the scuff plate (1) to the vehicle.
4. Using trim stick C-4755 or equivalent, pry up on each scuff plate clip location hole.
5. Remove the scuff plate (1).
   Fig 3: Amplifier Trim Cover & Mounting Bracket

   Courtesy of CHRYSLER GROUP, LLC
   NOTE:

   The following step applies if the vehicle is equipped with a Bose® amplifier on the rear passenger side of the cargo area.

6. Remove the amplifier trim cover (1) from the amplifier mounting bracket (2).
   Fig 4: Cargo Load Floor

   Courtesy of CHRYSLER GROUP, LLC
7. Pull outward at the rear of cargo load floor (1) to remove.
   Fig 5: Docking Station, Seat Bracket & Pilot Holes

   Courtesy of CHRYSLER GROUP, LLC
8. Position the docking station (1) in the approximate position shown in illustration on the left side of the cargo area.
9. To determine the mounting location, measure 12.7 cm (5 inches) from the seat bracket to the edge of the docking station (2) and 2.54 cm (1 inch) from the floor of the cargo area to the bottom of the docking station (3).
10. With the docking station in the correct position, drill a 3/16 inch pilot hole in each location (4).
11. Remove the docking station and drill four 3/8 inch holes (4) to mount scrivets.
12. Using the drill, remove some material from the inside of the holes that were just drilled. This is necessary to give the scrivet base room enough to expand when installed.
    Fig 6: Placing Docking Station Face Down

    Courtesy of CHRYSLER GROUP, LLC
13. Place the docking station face down on a flat surface.
14. Obtain one strip of Velcro and separate the two halves. Remove the adhesive backing from one side and place the Velcro strip with the adhesive backing face down (2) on the back of the docking station (1). Press the adhesive firmly to the docking station to ensure it is secured.
    Fig 7: Inserts & Velcro Strip

    Courtesy of CHRYSLER GROUP, LLC
15. Remove the adhesive backing from the other side of the Velcro.
16. In the same location that the docking station will be mounted, place the Velcro strip (2) with the adhesive side towards the wall of the cargo area. Press firmly to ensure the adhesive makes good contact with the wall.
17. Install the four scrivet inserts (1, 3).
    Fig 8: Docking Station, Seat Bracket & Pilot Holes

    Courtesy of CHRYSLER GROUP, LLC
18. With the docking station in the measured location, install the four plastic screws (4) into the scrivet inserts.

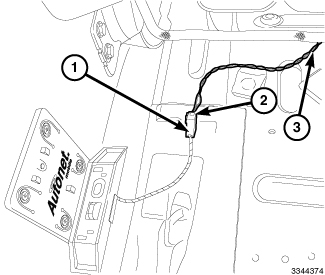

    Fig 9: Power Connector, Wiring Harness & Connector

    Courtesy of CHRYSLER GROUP, LLC
19. Connect the power connector (1) from the Wifi docking station to the wiring harness connector (2).
20. Place a piece of tape on the connectors to keep them in position while routing wires in the next steps.
21. Route the wiring harness (3) under the carpeting below the rear seats.

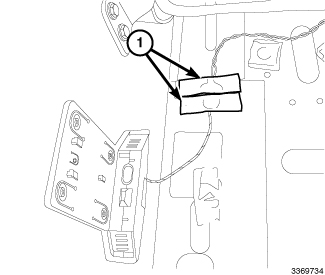

    Fig 10: Foam Tape

    Courtesy of CHRYSLER GROUP, LLC
22. Trim and place two pieces of foam tape (1) over the connectors as shown in illustration. This will help prevent rattling noises and will help protect the connectors from rubbing on the cargo floor.
    Fig 11: Left Side Closeout Panel & Screw

    Courtesy of CHRYSLER GROUP, LLC
23. Remove the screw (2) from the left side closeout panel (1).
24. Using trim stick C-4755 or equivalent, disengage the rear retaining tabs and remove the left side closeout cover (1).
    Fig 12: Front Console To Shifter Bezel Cover Screw

    Courtesy of CHRYSLER GROUP, LLC
25. Remove the screw (1) securing the front console to shifter bezel cover. Repeat for the opposite side.
    Fig 13: Right Side Console Closeout Cover & Screw

    Courtesy of CHRYSLER GROUP, LLC
26. Remove the screw (2) from the right side console closeout cover (1).
27. Using trim stick C-4755 or equivalent, disengage the front floor console to closeout cover retaining clips.
28. Pull the closeout cover rearward to disengage the retaining clip in the floor.
29. Remove the closeout cover (1) from the vehicle.
    Fig 14: Rear Floor Console, Rear Cupholder Insert & Rear Retaining Nut

    Courtesy of CHRYSLER GROUP, LLC
30. Position the parking brake handle up fully.
31. Remove the rear cupholder insert (2).
32. Remove the rear retaining nut (3) located in the rear cupholder cavity.
33. Pull the rear floor console rearward to disengage the front to rear floor console retaining clips/tabs.
34. Slide the rear floor console (1) over the parking brake handle and remove from the vehicle.
    Fig 15: Front Cupholder Insert, Retaining Nuts, Power Harness & Front Floor Console

    Courtesy of CHRYSLER GROUP, LLC
35. Remove the front cupholder insert (2).
36. Remove the retaining nuts (1) located in the cupholder cavity and in the rear of the front floor console (4).
37. Pull the floor console rearward slightly and disconnect the 12V power harness (3).
38. Remove the front floor console (4) from the vehicle.

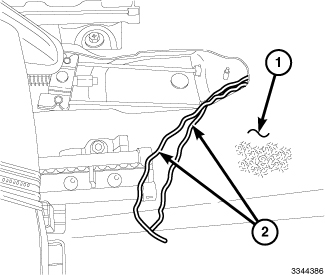

    Fig 16: Carpet & Wifi Wires

    Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    While routing wires under the carpet and along the floor console, ensure that the wires are positioned away from the parking brake wires to prevent any rubbing damage.

39. Route the Wifi wires (2) under the rear seat underneath the carpet (1).
40. Lift the carpet (1) and bring the wires from under the carpet into the opening for the floor console.
41. Route the wires under the carpet along the way to the front console, near the 12V keyed power outlet.
    Fig 17: Splice Clip

    Courtesy of CHRYSLER GROUP, LLC
42. Locate the power outlet wiring harness in the front of the center console.
43. Splice the supplied fused pigtail (2) into the cigarette lighter power wire and in series with the Wi-Fi power harness.
44. Remove 13 mm (0.5 in.) of insulation from each wire that needs to be spliced.
45. Place a piece of adhesive lined heat shrink tubing on one side of the wire. Make sure the tubing will be long enough to cover and seal the entire repair area.
46. Place the strands of wire overlapping each other inside of the splice clip (1).

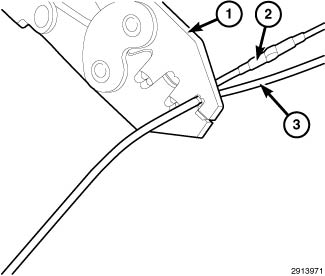

    Fig 18: Crimping Tool & Splice Clip

    Courtesy of CHRYSLER GROUP, LLC
47. Using crimping tool (1), Mopar p/n 05019912AA or equivalent, crimp the splice clip and wires together.
    Fig 19: Soldering Connection

    Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    Do not use acid core solder.

48. Solder (3) the connection (2) together using rosin core type solder (1) only.
    Fig 20: Heat Shrink Tubing

    Courtesy of CHRYSLER GROUP, LLC
49. Center the heat shrink tubing (2) over the joint and heat using a heat gun. Heat the joint until the tubing is tightly sealed and sealant (1) comes out of both ends of the tubing.
50. Repeat the steps above to splice the ground cable from the Wifi unit to the ground wire of the power outlet harness.
    Fig 21: Front Cupholder Insert, Retaining Nuts, Power Harness & Front Floor Console

    Courtesy of CHRYSLER GROUP, LLC
51. Connect the 12V power harness (3), position and align the front floor console (4) in the vehicle.
52. Install the retaining nuts (1) located in the cupholder cavity and in the rear of the front floor console (4). Tighten the retaining nuts securely.
53. Install the front cupholder insert (2).
    Fig 22: Front Console To Shifter Bezel Cover Screw

    Courtesy of CHRYSLER GROUP, LLC
54. Install the screw (1) securing the front console to shifter bezel cover. Tighten the screw securely. Repeat for the opposite side.
    Fig 23: Left Side Closeout Panel & Screw

    Courtesy of CHRYSLER GROUP, LLC
55. Position the left side closeout cover (1) and hand tap to engage the rear retaining tabs.
56. Install the screw (2) to the left side closeout panel (1). Tighten the screw securely.
    Fig 24: Right Side Console Closeout Cover & Screw

    Courtesy of CHRYSLER GROUP, LLC
57. Position the right closeout cover (1) into the vehicle push forward to engage the retaining clip in the floor.
58. Hand tap to engage the front floor console to closeout cover retaining clips.
59. Install the screw (2) to the right side console closeout cover (1). Tighten the screw securely.
    Fig 25: Rear Floor Console, Rear Cupholder Insert & Rear Retaining Nut

    Courtesy of CHRYSLER GROUP, LLC
60. Slide the rear floor console (1) over the parking brake handle and position into the vehicle.
61. Push the rear floor console forward to engage the front to rear floor console retaining clips/tabs.
62. Install the rear retaining nut (3) located in the rear cupholder cavity. Tighten the nut securely.
63. Install the rear cupholder insert (2).
64. Position the parking brake handle down fully.
65. Connect the negative battery cable.
    Fig 26: Cargo Load Floor

    Courtesy of CHRYSLER GROUP, LLC
66. Load cargo load floor (1) into vehicle through the liftgate opening.
    Fig 27: Wifi Router & Docking Station

    Courtesy of CHRYSLER GROUP, LLC
67. Install the Wifi router (1) to the docking station (2).
68. Using a Wifi capable device, verify that the router is functioning correctly.
