Gear Shift Cable Adjustment
WARNING: This page is about a different variant/trim than selected.
- Remove the center floor console to gain access to the gear shift cable under the gear shift assembly. Refer to CONSOLE, FLOOR, REMOVAL .
- Place the DDCT transaxle and the shift lever into PARK. (Engine should not be running.)
- Gently rock the vehicle to make sure the transmission park pawl is locked into the PARK annulus.

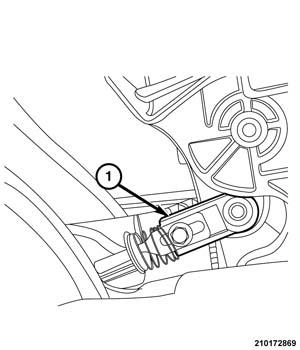

- Loosen the cable adjustment screw, but don't remove it.
- The cable will settle into its natural position which should be near the center of the adjustment slot.
- Tighten the adjusting screw to 8 +/-1 Nm (70 in. lb.).
- Verify the shift lever can pull the transaxle out of PARK and into Reverse.
- Install the floor console. Refer to CONSOLE, FLOOR, INSTALLATION .
