Standard Procedure - Dual Mass Flywheel Reset

WARNING: This page is about a different variant/trim than selected.

multimedia:A supplement to the article is available.

CAUTION:

The Dual Mass Flywheel (DMF) must be reset any time the engine and transaxle are separated or damage will result on the first engine crank. Always check a new flywheel to verify it is set up properly or damage may result.

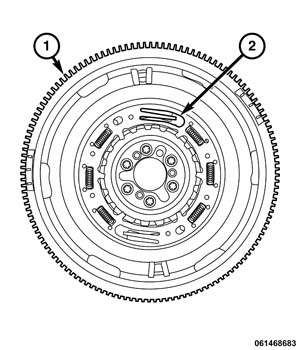

Fig 1: Dual Mass Flywheel Finger Position

Courtesy of CHRYSLER GROUP, LLC

The DMF (1) will appear this way once separated from the engine assembly. Note the finger position (2).

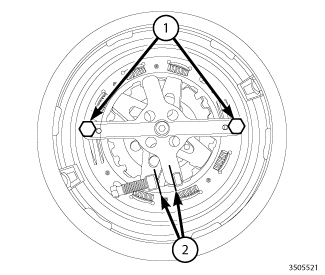

Fig 2: Set Screws & Gap
Courtesy of CHRYSLER GROUP, LLC
Install the (special tool #10310, Tool, Dual Mass Flywheel Reset) to the flywheel with the set screws (1) aligned as shown over the reset fingers. When properly installed the gap (2) will be 19 - 22 mm (0.75 - 0.875 in.).

Fig 3: Special Tool #10310
Courtesy of CHRYSLER GROUP, LLC

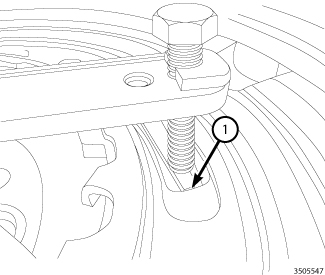

Fig 4: Aligning Fingers With End Of Plate
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The fingers only need to be depressed to the level of the first plate. Do not depress them any further as damage may occur.
Turn the jack screw until the fingers align with the end of the plate (1). Tighten the set screws over both fingers until they are even with the plate.

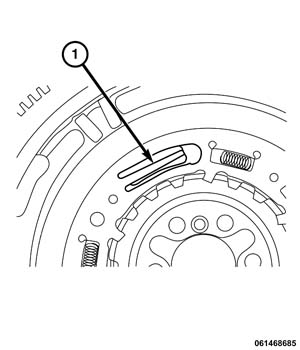

Fig 5: Finger Position
Courtesy of CHRYSLER GROUP, LLC
Loosen the jack screw and remove (special tool #10310, Tool, Dual Mass Flywheel Reset). The flywheel will appear this way when properly reset. Note the finger position (1).
