Dual Mass Flywheel

WARNING: This page is about a different variant/trim than selected.

WARNING:

Chrysler LLC does not manufacture any vehicles or replacement parts that contain asbestos. Aftermarket products may or may not contain asbestos. Refer to aftermarket product packaging for product information. Whether the product contains asbestos or not, dust and dirt can accumulate on manual clutch parts during normal use. Follow practices prescribed by appropriate regulations for the handling, processing and disposing of dust and debris.

NOTE:

Do not reuse the bolts that hold the flywheel to crankshaft. Always install new bolts when flywheel removal is required.

NOTE:

Reset the Dual Mass Flywheel before installation. Refer to FLYWHEEL, STANDARD PROCEDURE .

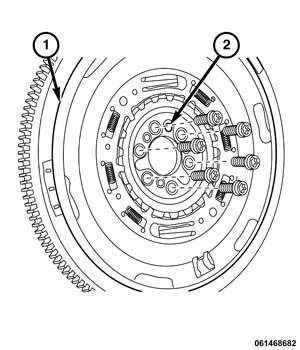

Fig 1: Flywheel & Torx-Head Bolts

Courtesy of CHRYSLER GROUP, LLC

Place and hold flywheel in position on the back of the engine and align flywheel to the 7.2 mm (0.283 in) (2) non-threaded hole in the crankshaft flange.
Install new bolts to hold flywheel (1) l to the crankshaft flange.

Fig 2: Flywheel Locking Tool
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Typical installation of 10272 shown.
Install (special tool #10272, Tool, Flywheel Locking)
NOTE:
It may be necessary to install an appropriate length 10 MM bolt, washer and nut in place of the supplied 12 MM fastener.
Tighten the flywheel bolts in a crossing pattern. Refer to SPECIFICATIONS .
Install the transmission. Refer to INSTALLATION .
