Disc, Clutch: Installation: DDCT

WARNING: This page is about a different variant/trim than selected.

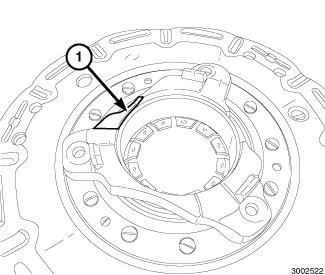

Fig 1: Mounting Flange Groove

Courtesy of CHRYSLER GROUP, LLC

Install the even gear pressure plate ensuring that the groove (1) of the mounting flange (1) corresponds to the oil pipe for the slave cylinder.

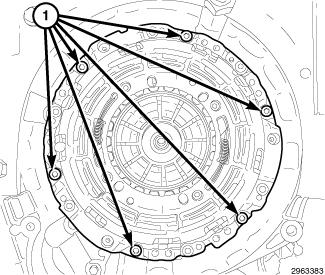

Fig 2: Pressure Plate Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the even gear pressure plate bolts (1) and tighten to 10 N.m (89 in. lbs.).

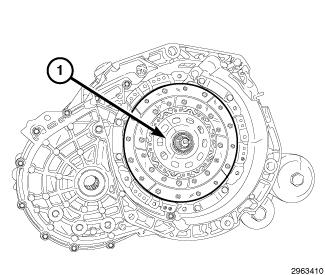

Fig 3: Clutch Disc
Courtesy of CHRYSLER GROUP, LLC
Install the even gear clutch disc (1).

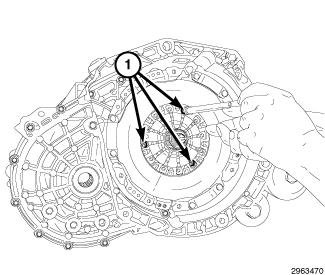

Fig 4: Clutch Assembly Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the odd gear clutch assembly and tighten the fasteners (1) to 20 N.m (15 ft. lbs.).

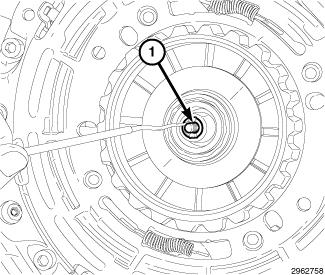

Fig 5: Release Bearing
Courtesy of CHRYSLER GROUP, LLC
Install the odd gear thrust bearing tightening the until it touches the clutch mechanism spring tabs. Follow the adjustment procedure in STANDARD PROCEDURE .

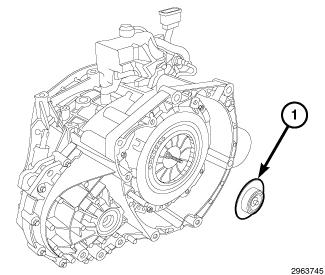

Fig 6: Protective Cap
Courtesy of CHRYSLER GROUP, LLC
Install the protective cap.

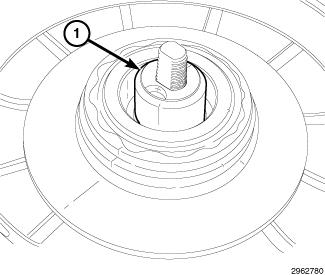

Fig 7: Release Bearing Retaining Clip
Courtesy of CHRYSLER GROUP, LLC
Install a new retention clip.
