Cylinder, Clutch Slave: Removal: Manual

WARNING: This page is about a different variant/trim than selected.

WARNING:

Chrysler LLC does not manufacture any vehicles or replacement parts that contain asbestos. Aftermarket products may or may not contain asbestos. Refer to aftermarket product packaging for product information. Whether the product contains asbestos or not, dust and dirt can accumulate on manual clutch parts during normal use. Follow practices prescribed by appropriate regulations for the handling, processing and disposing of dust and debris.

NOTE:

To prevent drainage of clutch master cylinder assembly upon slave cylinder removal, it is necessary to make sure brake master cylinder fluid level is full and reservoir cap is installed tight.

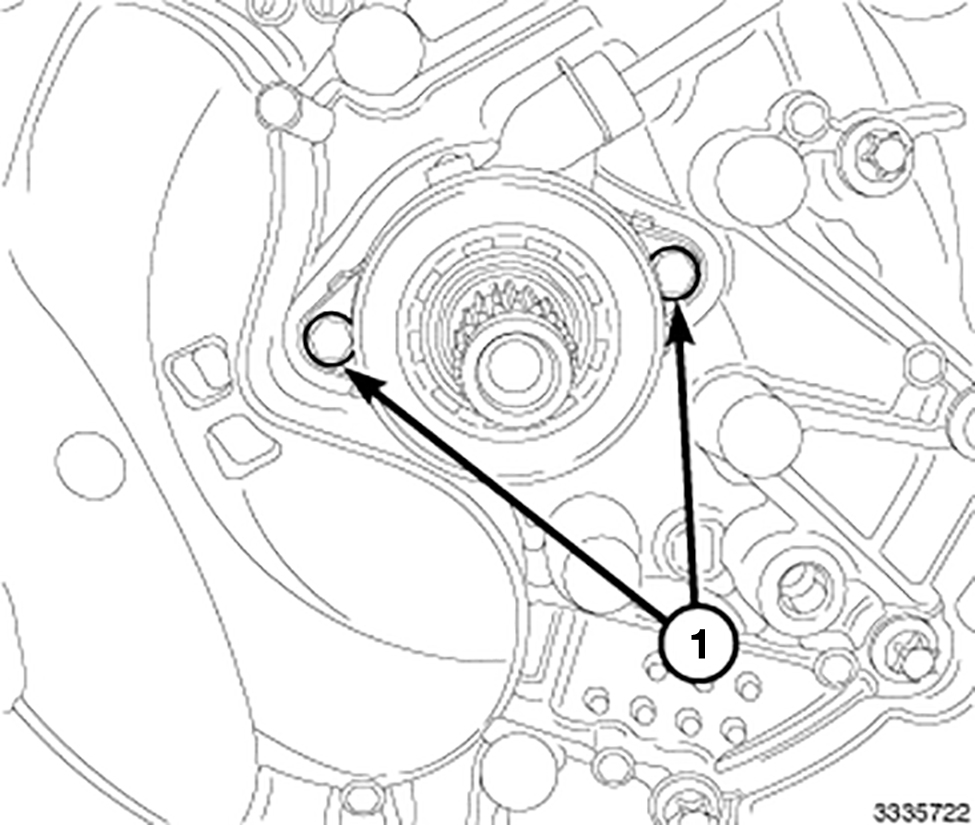

Fig 1: Concentric Slave Cylinder Retention Tabs

Courtesy of CHRYSLER GROUP, LLC

Remove transmission from vehicle. Refer to REMOVAL .
Release the retention tabs from the Concentric Slave Cylinder (CSC) (1).

Fig 2: Concentric Slave Cylinder (CSC) Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the CSC bolts (2).

Fig 3: Retention Clip & Connection
Courtesy of CHRYSLER GROUP, LLC
Disconnect the hydraulic connection at the case. Release the retention clip (1), then separate the connection (2).

Fig 4: Hydraulic Fitting & Plastic Retainer
Courtesy of CHRYSLER GROUP, LLC
Disconnect the hydraulic fitting (2) from the plastic retainer (1).
Remove the CSC.
