DDCT, Even Gears
WARNING: This page is about a different variant/trim than selected.
WARNING:
Chrysler LLC does not manufacture any vehicles or replacement parts that contain asbestos. Aftermarket products may or may not contain asbestos. Refer to aftermarket product packaging for product information. Whether the product contains asbestos or not, dust and dirt can accumulate on manual clutch parts during normal use. Follow practices prescribed by appropriate regulations for the handling, processing and disposing of dust and debris.
- Remove transaxle from the vehicle. Refer to REMOVAL .
- Remove the clutch assembly. Refer to DISC, CLUTCH, REMOVAL .

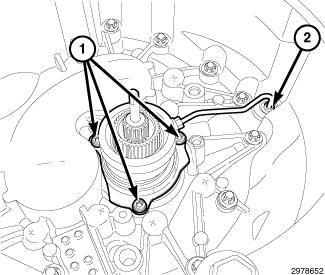

- Disconnect the hydraulic fitting from the plastic retainer (2).
- Remove the even gear slave cylinder bolts (1) and remove the slave cylinder.
