Cylinder, Clutch Slave: Installation: Manual

WARNING: This page is about a different variant/trim than selected.

WARNING:

Chrysler LLC does not manufacture any vehicles or replacement parts that contain asbestos. Aftermarket products may or may not contain asbestos. Refer to aftermarket product packaging for product information. Whether the product contains asbestos or not, dust and dirt can accumulate on manual clutch parts during normal use. Follow practices prescribed by appropriate regulations for the handling, processing and disposing of dust and debris.

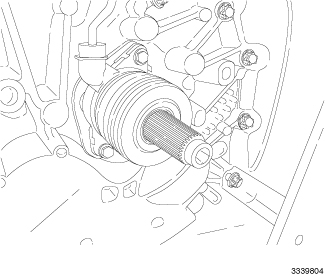

Fig 1: Concentric Slave Cylinder (CSC) and Bolts

Courtesy of CHRYSLER GROUP, LLC

Install the Concentric Slave Cylinder (CSC) and bolts to the transmission. Tighten the bolts to the proper SPECIFICATIONS .

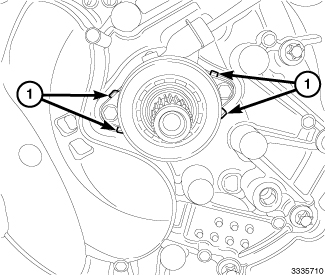

Fig 2: Concentric Slave Cylinder Retention Tabs
Courtesy of CHRYSLER GROUP, LLC
Engage the retention tabs to the CSC (1).

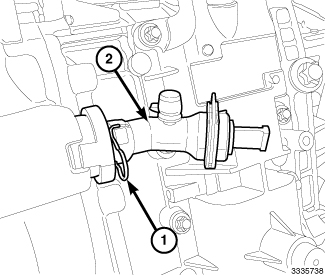

Fig 3: Hydraulic Fitting & Plastic Retainer
Courtesy of CHRYSLER GROUP, LLC
Connect the hydraulic fitting (2) to the plastic retainer (1).

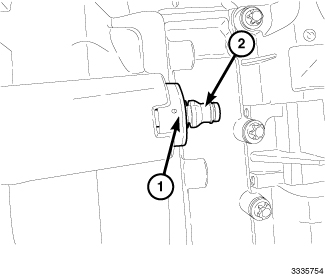

Fig 4: Retention Clip & Connection
Courtesy of CHRYSLER GROUP, LLC
Connect the hydraulic connection at the case.
Install the transmission. Refer to INSTALLATION .
Bleed the hydraulic clutch system. Refer to STANDARD PROCEDURE .
