DDCT, Odd Gears

WARNING: This page is about a different variant/trim than selected.

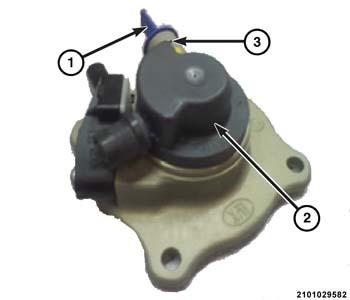

Fig 1: Plug, Clip & Dust Cap
GC0161709Courtesy of CHRYSLER GROUP, LLC
  1. Remove the hydraulic line plug (1) from the new odd gear slave cylinder and remove the dust cap (2) by hand. Do not remove the hydraulic line clip (3).
    Fig 2: Puller Tool & Odd Gear Slave Cylinder
    GC0161739Courtesy of CHRYSLER GROUP, LLC
  2. Install the (special tool #2012400210, Remover / Installer, CSC Valve) puller tool (1) onto the odd gear clutch slave cylinder (2).
    3. NOTE:

    Do not over tighten the puller tool bolt.

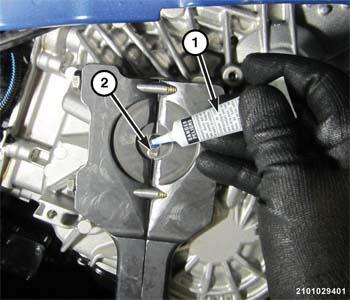

    Fig 3: Applying Loctite To Threads
    GC0161731Courtesy of CHRYSLER GROUP, LLC
  3. Tighten the (special tool #2012400210, Remover / Installer, CSC Valve) puller tool bolt until the bolt bottoms out on the washer or becomes tight on the odd gear slave cylinder.
  4. Remove the old Loctite from the pull rod threads (2) and apply new Mopar Thread Lock and Seal Loctite (1).

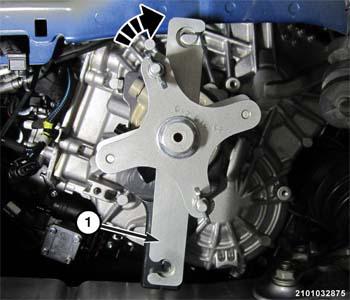

    Fig 4: Installing Odd Gear Clutch Slave Cylinder
    GC0161727Courtesy of CHRYSLER GROUP, LLC
  5. Install the odd gear clutch slave cylinder onto the pull rod and tighten CW till hand tight.

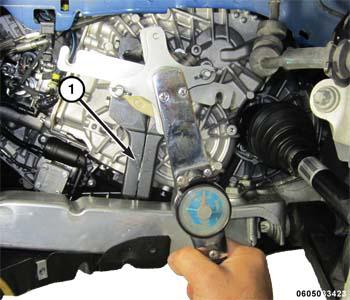

    Fig 5: Tightening Puller Tool Bolt
    GC0161747Courtesy of CHRYSLER GROUP, LLC
  6. Holding the (special tool #2012400210, Remover / Installer, CSC Valve) clamp tool handle (1) tighten the puller tool bolt to 8 Nm (70 lb. in.).

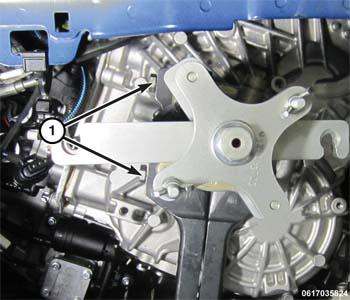

    Fig 6: Tool Fasteners
    GC0161716Courtesy of CHRYSLER GROUP, LLC
  7. Loosen the (special tool #2012400210, Remover / Installer, CSC Valve) clamp tool fasteners but do not remove.

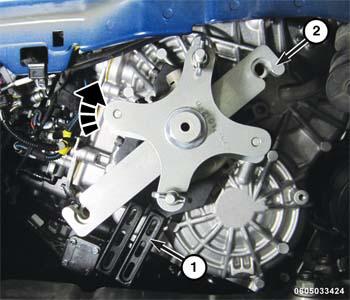

    Fig 7: Rotating Odd Gear Clutch Slave Cylinder Into Position
    GC0161720Courtesy of CHRYSLER GROUP, LLC
  8. Hold the clamp tool handle (1) and rotate the odd gear clutch slave cylinder (2) into the position noted during removal.
    Fig 8: Puller Tool Bolt
    GC0161698Courtesy of CHRYSLER GROUP, LLC
  9. Loosen the puller tool bolt until the odd gear clutch slave cylinder rests on the clamp tool surface.

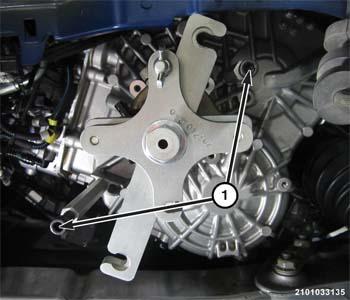

    Fig 9: Support Posts
    GC0161713Courtesy of CHRYSLER GROUP, LLC
  10. Install the (special tool #2012400210, Remover / Installer, CSC Valve) support posts (1) and tighten by hand.
    Fig 10: Support Post Fasteners
    GC0161710Courtesy of CHRYSLER GROUP, LLC
  11. Rotate the (special tool #2012400210, Remover / Installer, CSC Valve) push bar CW onto the support posts and tighten the support post fasteners (1) hand tight with a socket.
    Fig 11: Puller Tool Bolt
    GC0161746Courtesy of CHRYSLER GROUP, LLC
    12. NOTE:

    Do not over tighten the puller tool bolt.

    Fig 12: Clamp Tool Fasteners
    GC0161701Courtesy of CHRYSLER GROUP, LLC
  12. Tighten the (special tool #2012400210, Remover / Installer, CSC Valve) puller tool bolt (1) until the bolt bottoms out on the washer or it becomes tight on the new odd gear slave cylinder piston.
  13. Remove the (special tool #2012400210, Remover / Installer, CSC Valve) clamp tool fasteners (1) and clamp tool. If the clamp tool does not remove easily perform the following steps:
    1. Loosen the support post fasteners but do not fully remove.
    2. Loosen the support posts approximately a half turn.
    3. Tighten the support post fasteners hand tight.
    4. Remove the clamp tool.
    5. If the clamp tool still does not remove easily, repeat the above steps until the clamp tool is easily removed.
    Fig 13: Puller Tool Bolt
    GC0161746Courtesy of CHRYSLER GROUP, LLC
  14. Loosen the (special tool #2012400210, Remover / Installer, CSC Valve) puller tool bolt (1) until the new odd gear slave cylinder descends onto the transmission case.
  15. Remove the (special tool #2012400210, Remover / Installer, CSC Valve) puller tool and rotate the new odd gear slave cylinder CCW into the position noted during removal.

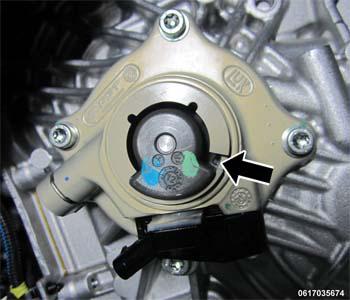

    Fig 14: Dust Cap Key Way
    GC0161734Courtesy of CHRYSLER GROUP, LLC
  16. Turn the odd gear slave cylinder piston so that the dust cap key way is open.

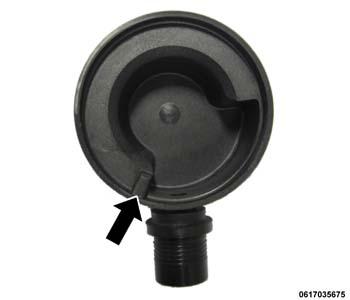

    Fig 15: Key At Bottom Of Dust Cap
    GC0161723Courtesy of CHRYSLER GROUP, LLC
  17. Observe the key at the bottom of the dust cap.
    Fig 16: Dust Cover
    GC0161707Courtesy of CHRYSLER GROUP, LLC
    18. NOTE:

    Make sure the dust cap key is aligned with the odd gear slave cylinder key way.

    Fig 17: Odd Gear Slave Cylinder Bolts
    GC0161699Courtesy of CHRYSLER GROUP, LLC
  18. Install the odd gear slave cylinder dust cap by hand.
  19. Install the odd gear slave cylinder bolts (1) and tighten to the proper SPECIFICATIONS .
    Fig 18: Odd Gear Slave Cylinder Electrical Connector
    GC0161694Courtesy of CHRYSLER GROUP, LLC
  20. Install the odd gear slave cylinder electrical connector (1).
    Fig 19: Hydraulic Line & Clips
    GC0161700Courtesy of CHRYSLER GROUP, LLC
  21. Install the odd gear slave cylinder hydraulic line into the odd gear slave cylinder (3) making sure it clips into place and the clip (1) is fully installed.
  22. Install the odd gear slave cylinder hydraulic line onto the retention clip (2).
    Fig 20: Ground Cable Bolt
    GC0155599Courtesy of CHRYSLER GROUP, LLC
  23. Install the ground cable and bolt (1) onto the transmission side cover and tighten to the proper SPECIFICATIONS .
  24. Install the LH wheel house splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION .
  25. Install the LH front wheel. Refer to INSTALLATION .
  26. Lower the vehicle.
  27. Install the battery tray. Refer to TRAY, BATTERY, INSTALLATION .
  28. Install the battery. Refer to STANDARD PROCEDURE .
  29. Perform the scan tool functions for the odd gear clutch position sensor replacement (Refer to ).
